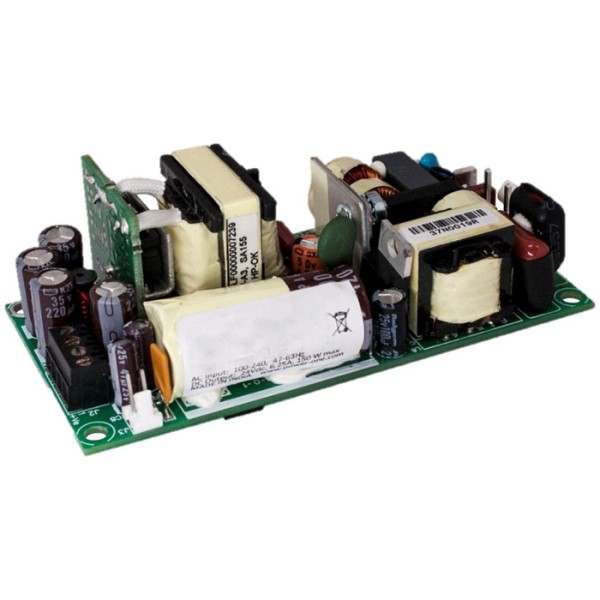

BEL POWER SOLUTIONS MBC1501T05G Medical Power Supply
The BEL POWER SOLUTIONS MBC150 series offers a robust and reliable power solution for medical and industrial applications. Delivering 150W of output power with forced-air cooling, these power supplies feature a wide universal input range (90-264 VAC) and are designed to meet stringent medical safety standards (EN/IEC 60601-1). The MBC series provides 2 x MOPP isolation for enhanced patient protection and is ideal for a variety of applications including medical devices, telecom equipment, and industrial automation. They are available with various output voltages and connector options to suit diverse system requirements.
BEL POWER SOLUTIONS MBC1501T05G Medical Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 1.70 A max.
- Input Current (230 VAC): 0.85 A max.
- No Load Power: 1.2 W
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current (120 VAC): < 140 µA
- Leakage Current (230 VAC): < 250 µA
- Output Voltage: 5 V to 48 V
- Output Power: 150 W
- Fan Output Voltage: 12 V
- Efficiency: 84% typical (120 VAC), 86% typical (230 VAC)
- Hold Up Time: 6 ms (120 VAC), 10 ms (230 VAC)
- Power Factor: 0.99 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Isolation Voltage: Min. 5900 VDC
- Safety Standards: EN 60601-1, IEC 60601-1 (ed.3)
- Agency Approvals: Nemko, UL, C-UL
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 70°C
- Altitude: Operating: 10,000 ft., Non-Operating: 40,000 ft.
