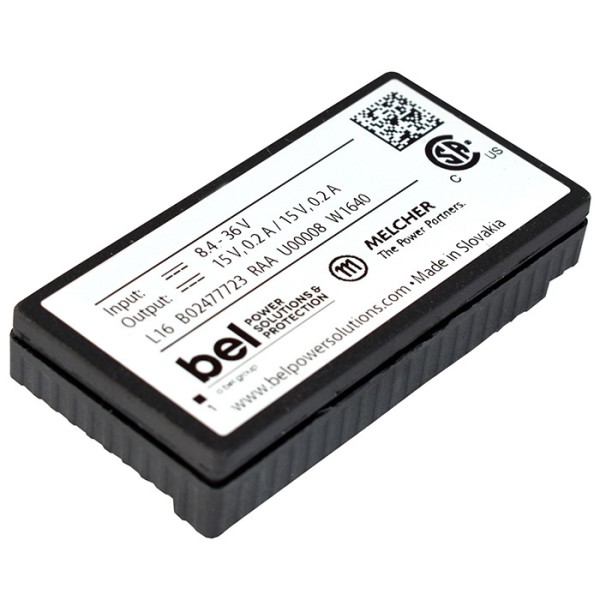

BEL POWER SOLUTIONS 70IMX715158G 7 Watt DC-DC Converter
The BEL POWER SOLUTIONS IMX7/IMS7 Series of 7-watt DC-DC converters are designed to meet the latest industry standards. These board-mountable converters are suitable for mobile or stationary applications in transport, railways, industry, or telecom, where variable input voltages or high transient voltages are prevalent. They offer isolated outputs, flexible load distribution, and features like input undervoltage lockout and thermal protection. The planar technology ensures mechanical stability and long life, making them ideal for demanding industrial environments.
BEL POWER SOLUTIONS 70IMX715158G 7 Watt DC-DC Converter Specifications:
- Wide input voltage ranges: Up to 150 VDC
- RoHS compliance: Lead-free-solder and lead-solder-exempted products available
- Warranty: 5 year warranty for RoHS lead-free-solder products
- Isolated outputs: 1 or 2 isolated outputs up to 48 V
- Voltage withstand test: 1500 to 2000 VAC
- Immunity: IEC/EN 61000-4-2, -3, -4, -5, -6
- Efficiency: Typically 84%
- Input undervoltage lockout: Yes
- Adjustable output voltages: Yes
- Flex power: Flexible load distribution on outputs
- Output protection: No-load, overload, and short-circuit proof
- Operating temperature: -40 to +85 °C
- Thermal protection: Yes
- Technology: Planar technology for best mechanical stability
- Case size: 2” × 1” with 10.5 mm profile
- Safety approvals: IEC/EN 60950-1 and UL/CSA 60950-1
