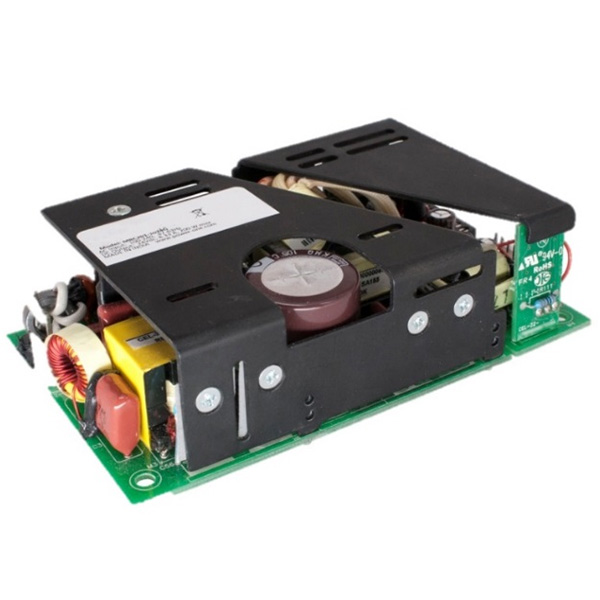

BEL POWER SOLUTIONS MBC2011T48G Medical Power Supply
The BEL POWER SOLUTIONS MBC201 series provides a reliable and efficient power solution for medical, telecom, datacom, and industrial equipment. This open-frame power supply delivers 200W of output power with forced-air cooling and a variety of single output voltages. It is designed and approved to the latest medical standards (EN/IEC 60601-1), providing 2 x MOPP isolation for Class I & Class II applications. The MBC201-1T48G model features a screw terminal connector and is suitable for a wide range of medical devices and applications requiring a safe and regulated power source.
BEL POWER SOLUTIONS MBC2011T48G Medical Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 2.4 A max.
- Input Current (230 VAC): 1.2 A max.
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current (120 VAC): < 150 µA
- Leakage Current (230 VAC): < 300 µA
- No Load Power: 0.8 W
- Switching Frequency: 35 to 250 kHz, 90 kHz typical
- Output Voltage: 5 V to 48 V
- Output Power: 160 to 200 W
- Fan Output: 12 V
- Efficiency: 84% typical (120 VAC), 86% typical (230 VAC)
- Hold Up Time: 10 ms
- Power Factor: 0.99 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Short Circuit Protection: Short term, Automatic recovery
- Isolation Voltage: Min. 5900 VDC
- Safety Standards: EN 60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1
- Agency Approvals: Nemko, UL, C-UL
- CE mark: Complies with LVD Directive
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85° C
- Humidity: Non Condensing, 95%
- Altitude: Operating: 10,000 ft., Non-Operating: 40,000 ft.
