BROADCOM ACNTH87A500E Voltage Isolation Amplifier
The ACNT-H87A optical isolation amplifier provides precise voltage sensing with high linearity, excellent noise immunity, and low offset. Utilizing sigma-delta modulation technology, it offers a 2V input range, 1 GΩ input impedance, and high common-mode transient immunity of 15 kV/μs. Powered by a 5V supply, it features an active-high shutdown pin with ultra-low quiescent current, making it ideal for high-noise environments and power-sensitive applications like motor drives and renewable energy systems. Certified for safety standards, it ensures reliable voltage measurement and signal isolation.
BROADCOM ACNTH87A500E Voltage Isolation Amplifier Specifications:
- Input Range: 0 to 2V nominal
- Input Impedance: 1 GΩ
- Gain Tolerance: ACNT-H87A: ±1%, ACNT-H87B: ±0.5%, ACNT-H870: ±3%
- Offset Voltage Drift: 21 UV/°C
- Non-linearity: Max 0.1%
- Power Supply Range: 3V to 5.5V
- Common-Mode Transient Immunity: 15 kV/μs
- Operating Temperature: -40°C to +110°C
- Insulation Voltage: 2262 Vpeak working insulation
- Dimensions: 15-mm Stretched SO-8 package
- Safety Certifications: UL, CSA, IEC/EN 60747-5-5

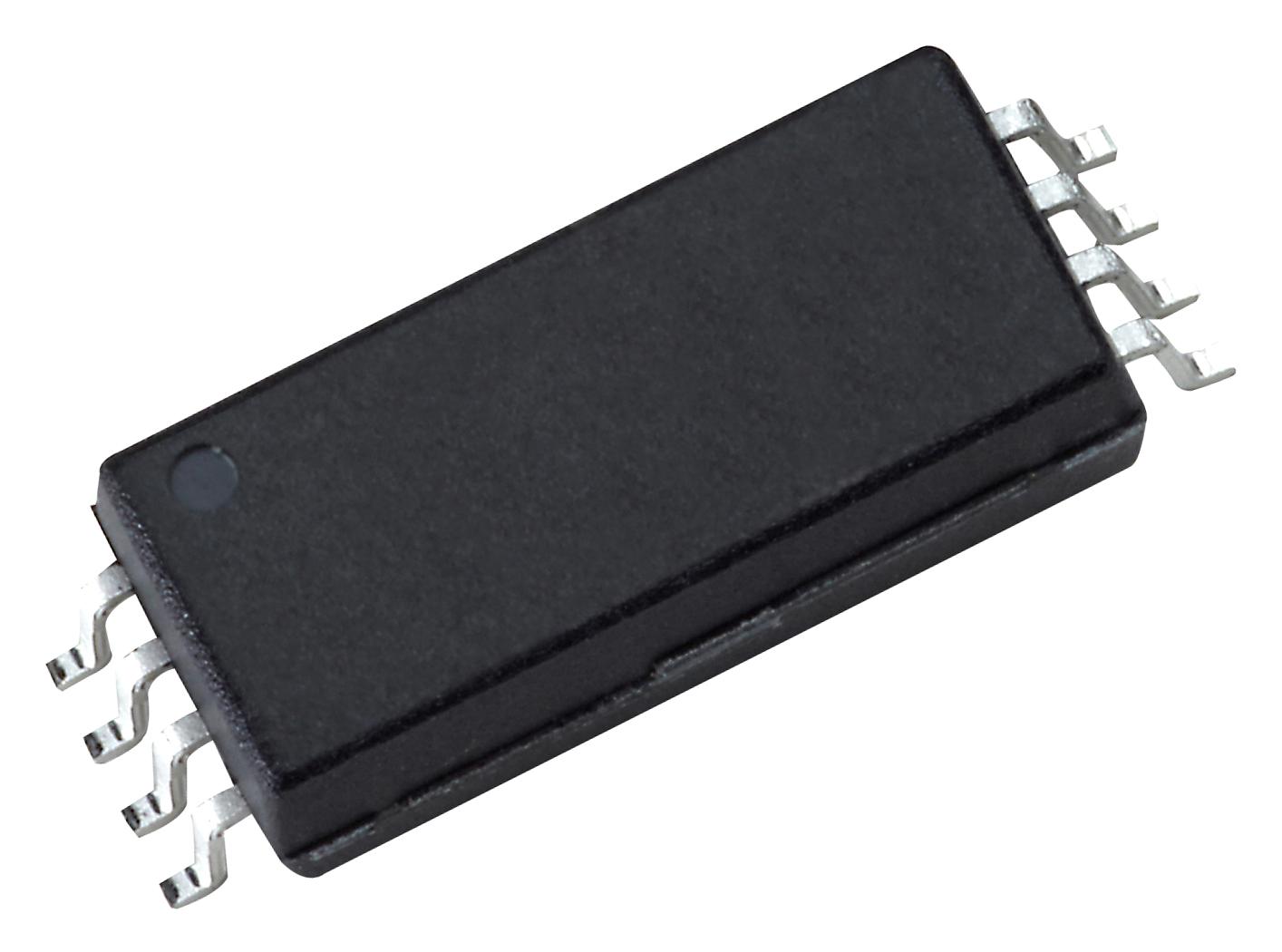

Buy the Broadcom ACNT-H87A-500E – Reliable Voltage Sensor for Industrial Applications
Enhance your voltage measurement system with the Broadcom ACNT-H87A-500E voltage sensor. Designed for high noise environments, it offers ultra-high impedance, excellent linearity, and safety certifications. Its sigma-delta modulation technology ensures accurate differential voltage detection over a wide temperature range, while the low quiescent current makes it suitable for battery-powered and power-sensitive systems. This compact, UL-recognized isolation amplifier simplifies high-voltage sensing in motor drives, renewable energy systems, and data acquisition, delivering dependable performance and peace of mind for demanding industrial applications.
Order your Broadcom ACNT-H87A-500E today and ensure precise, noise-immune voltage sensing with high safety standards for your industrial projects.
Frequently Asked Questions
Where can I buy BROADCOM ACNTH87A500E?
You can click on the BUY or RFQ button to purchase ACNTH87A500E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACNTH87A500E?
You can download the ACNTH87A500E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACNTH87A500E?
BROADCOM
