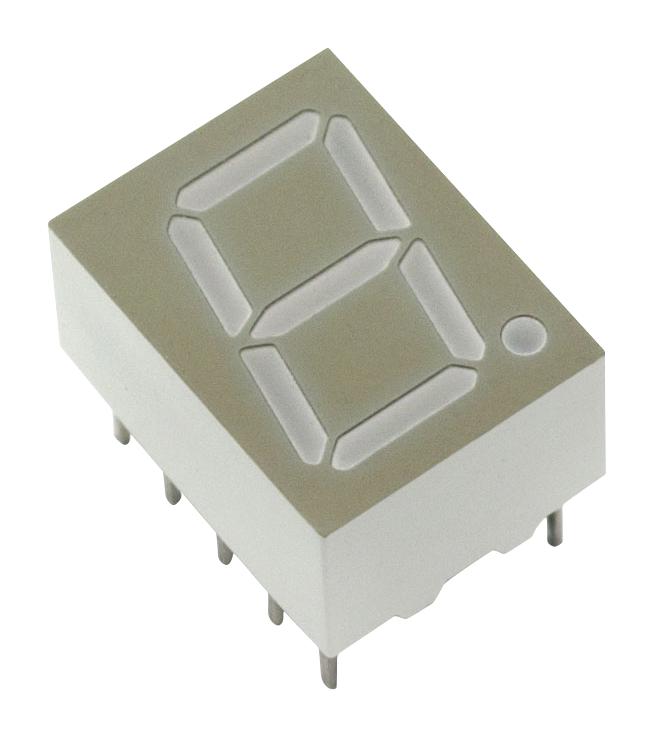

BROADCOM HDSP561E Seven Segment Display
These slim font seven segment displays feature a narrow, stylish design with mitered segments and gray face for high contrast. Available in 10 mm and 13 mm sizes with options for common anode or cathode configurations and various colors including green, yellow, and AlGaAs red. These displays are characterized for luminous intensity, with specifications covering maximum forward current, peak wavelength, and operating temperature, making them suitable for digital readouts, instrumentation, and display applications requiring high contrast and clarity.
BROADCOM HDSP561E Seven Segment Display Specifications:
- Character Size: 10 mm or 13 mm
- Colors: Green, Yellow, AlGaAs Red
- Configuration: Common Anode or Cathode
- Peak Wavelength: 635 nm for HER, 568 nm for Green, 589 nm for Yellow, 660 nm for AlGaAs Red
- Luminous Intensity: 1.100 to 2.800 mcd depending on model
- Forward Voltage: 1.80 to 2.50 V
- Peak Forward Current: 90 mA (HER), 45 mA (AlGaAs Red)
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +80°C
- Reverse Voltage: 5V per segment
- Wavesoldering Temperature: 250°C for 3 seconds
- Thermal Resistance: 351.5 °C/W for junction-to-pin
- Dimensions: 6.00 mm width, 9.70 mm length, 1.25 mm height for 10 mm models; 7.40 mm width, 15.24 mm length, 1.25 mm height for 13 mm models
