BROADCOM HCPL0730000E High Gain Optocoupler
This dual-channel optocoupler provides excellent isolation with high current transfer ratio of up to 1800% and very low input current of only 0.5 mA, making it ideal for low-power applications. It features a low output saturation voltage of 0.1 V, operates reliably from 0°C to 70°C, and supports high-density surface mount packaging. Its high output current capacity of 60 mA, combined with UL recognition for 3750 V rms and CSA approval, ensures safe and efficient performance in digital logic ground isolation, level shifting, and communication interfaces.
BROADCOM HCPL0730000E High Gain Optocoupler Specifications:
- Type: Dual-channel optocoupler
- Input Current: 0.5 mA (typical)
- Current Transfer Ratio: 1800% (typical)
- Output Saturation Voltage: 0.1 V
- Maximum Output Current: 60 mA
- Operating Temperature: 0°C to 70°C
- Safety Certification: UL recognized for 3750 V rms, CSA approved
- Packaging: Industry-standard SO-8 surface mount package
- Isolation Voltage: 3750 V rms for 1 minute
- Package Dimensions: Compact surface-mount, footprint compatible with standard PCB processes
- Resistance: Input-Output insulation resistance > 10^9 ohms
- Capacitance: Input-Output capacitance approximately 0.6 pF at 1 MHz
- Leakage Current: Input-Input < 10^-3 pA at 500 VDC
- Peak Forward Input Voltage: 5 V
- Maximum Storage Temperature: -55°C to 125°C
- Maximum Operating Temperature: -40°C to 85°C
- Reflow Temperature Profile: Compatible with Pb-free processes, peak at 260°C for 10 seconds

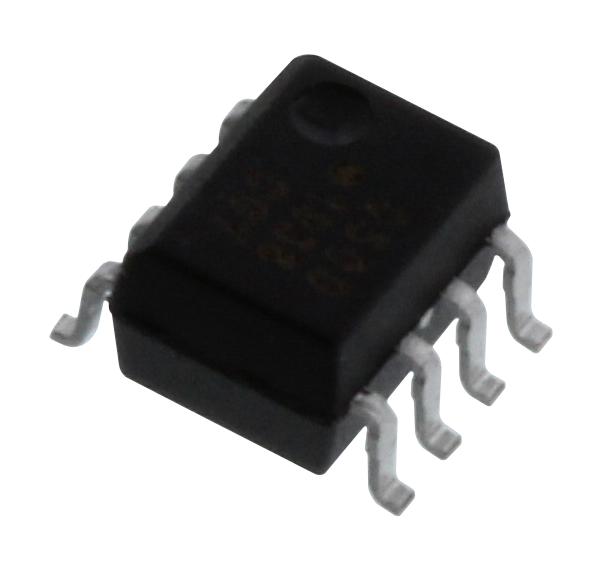

Buy the Avago HCPL-0730 Reliable Low Input Current Optocoupler for Industrial Applications
Order the Avago HCPL-0730 online today to ensure your systems benefit from high current transfer ratio, low input current requirements, and certified safety standards. Designed for seamless integration, this dual-channel optocoupler offers robust electrical isolation, excellent noise immunity, and high-speed operation. Perfect for microprocessor interface, level shifting, and ground isolation in industrial control, communication, and automation systems. Take advantage of fast delivery, competitive pricing, and trusted quality by purchasing now from our secure online platform.
Buy Avago HCPL-0730 now and experience unmatched reliability and performance in low-power digital isolation and high-density circuitry.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0730000E?
You can click on the BUY or RFQ button to purchase HCPL0730000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0730000E?
You can download the HCPL0730000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0730000E?
BROADCOM
