BROADCOM ACPLC799T500E Automotive Sigma-Delta Isolator
The ACPL-C799T is a high-performance automotive optically isolated sigma-delta modulator that converts analog signals into a high-speed digital data stream with galvanic isolation. Operating from a 5V supply, it offers 16-bit resolution, no missing codes, and a signal-to-noise ratio of 77 dB. Its compact surface-mount SO-8 package ensures reliability in automotive and industrial environments, featuring robust isolation, wide temperature tolerance, and compatibility with digital filters for accurate motor current, voltage, and battery sensing applications.
BROADCOM ACPLC799T500E Automotive Sigma-Delta Isolator Specifications:
- Resolution: 16 Bits
- Integral Nonlinearity: -16 +8 LSB
- Differential Nonlinearity: -0.9 to 0.9 LSB
- Offset Error: -1.0 to 0.1 mV
- Gain Error (Full-Scale Error): 2%
- Signal-to-Noise Ratio: 77 dB
- Effective Number of Bits (ENOB): 12 Bits
- Isolation Voltage: 1414 Vpeax working insulation, UL 5000 VRMS/1 min rating
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage: Vpp1 4.5V to 5.5V, Vpp2 3V to 5.5V
- Analog Input Range: ±50 mV (Full scale +80 mV)
- Input Resistance: Approximately 1.9 kΩ
- Insulation Resistance: >102 MΩ at 500V
- Maximum Input Voltage: -2V to +6V transient, withstand voltage up to 6000 V for 1 sec
- Dimensions: SO-8 package with recommended PCB layout for optimal isolation
- Output: Digital high (Voh 0.4V), low (Vol 0.2V), clock frequency 10 MHz

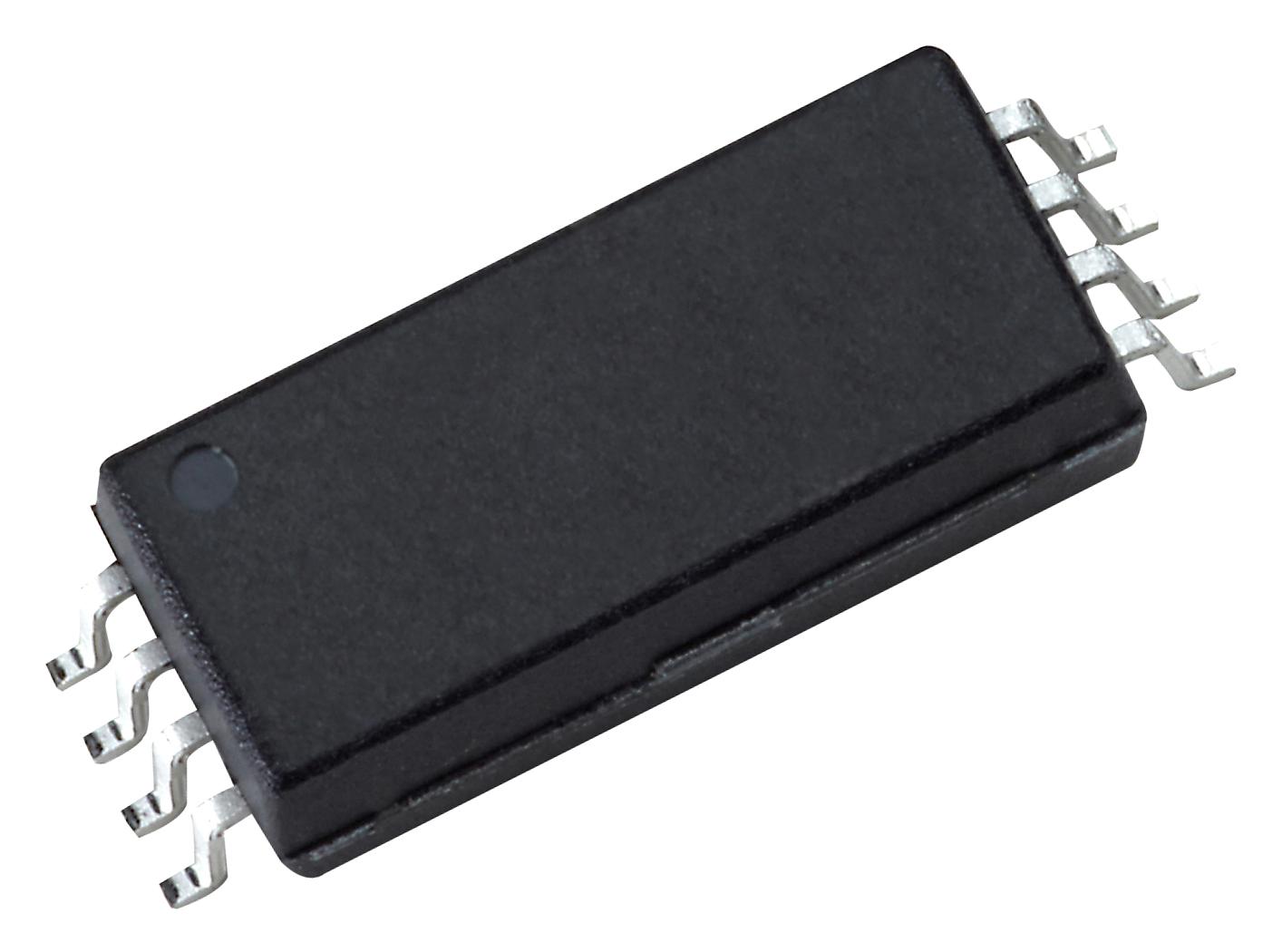

Buy the Buy BROADCOM ACPL-C799T Part Number ACPLC799T500E Online
Experience the reliability of the BROADCOM ACPL-C799T sigma-delta modulator by ordering online. Its compact design, high resolution, and automotive-grade insulation make it ideal for motor current measurement, inverter control, and battery sensing applications. With galvanic isolation up to 1414 Vpeax, enhanced noise immunity, and a wide temperature range, this device guarantees precision and durability in demanding environments. Purchase now to integrate advanced digital isolation technology into your automotive or industrial projects and ensure optimal performance.
Order your BROADCOM series ACPL-C799T automotive optically isolated sigma-delta modulator today and ensure accurate current sensing with superior reliability and isolation.
