BROADCOM ACPLW21L560E digital optocoupler
The ACPL-W21L560E is a low power, digital CMOS optocoupler designed for high-speed digital signal isolation. Operating from 2.7V to 5.5V, it features a CMOS output stage, guarantees immunity of 25 kV/us, and supports data rates up to 5 MBd. With a wide temperature range of -40°C to +105°C, it provides reliable performance in industrial and automation applications, including ground loop elimination, microprocessor interfacing, and power control. Recognized by UL and CSA, its compact package ensures easy integration into compact electronic systems, offering safety, efficiency, and high-speed digital communication.
BROADCOM ACPLW21L560E digital optocoupler Specifications:
- Supply Voltage: 2.7V to 5.5V
- Propagation Delay: 250 ns max
- Common Mode Transient Immunity: 25 kV/us
- Operating Temperature Range: -40°C to +105°C
- Isolation Voltage: UL Recognized 3750 Vams, CSA Approved
- Input Forward Voltage: 1.5 to 2.0 V at 2.2 mA
- Output Voltage: Vpp - 0.1 V to Vpp - 1.0 V
- Peak Forward Input Current: 1 A (pulsed, 1 µs)
- Output Current: Max 10 mA
- Package Type: Stretched SO-6
- Solder Temperature: 260°C for 10 s

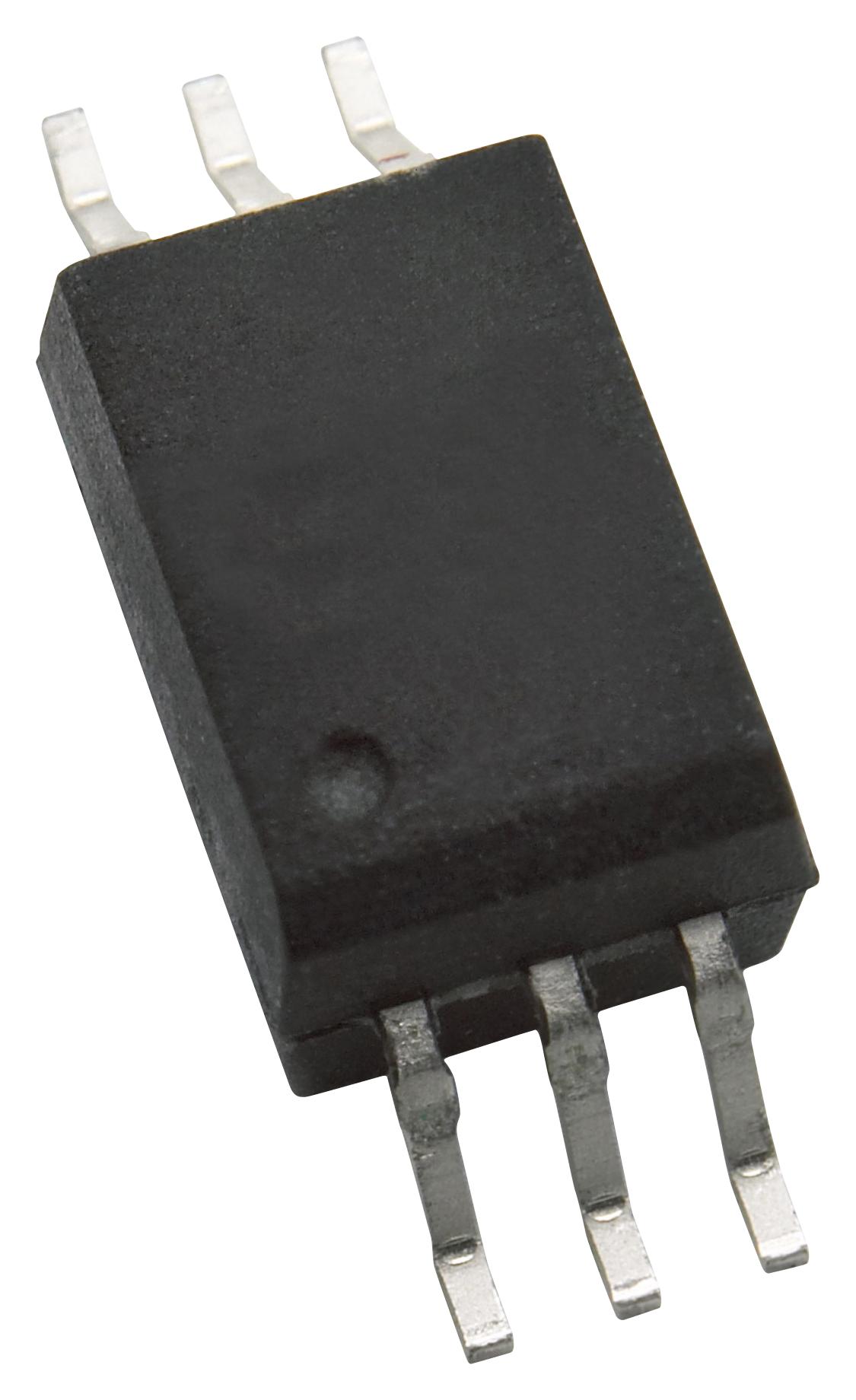

Buy the Buy Broadcom CMOS Optocoupler Part Number ACPLW21L560E Online
Enhance your electronic systems with the Broadcom ACPLW21L560E CMOS optocoupler, offering high-speed digital isolation from 2.7V to 5.5V. Its compact design and excellent immunity of 25 kV/us make it ideal for industrial automation, power control, and microprocessor interfacing. UL and CSA certifications ensure safety and compliance, while the wide temperature range guarantees robust performance in harsh environments. Easy to install and highly reliable, this optocoupler is your ideal choice for efficient high-speed digital communication.
Buy Broadcom ACPLW21L560E now and experience unmatched reliability and high-speed digital signal isolation for industrial and automation systems.
Frequently Asked Questions
Where can I buy BROADCOM ACPLW21L560E?
You can click on the BUY or RFQ button to purchase ACPLW21L560E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLW21L560E?
You can download the ACPLW21L560E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLW21L560E?
BROADCOM
