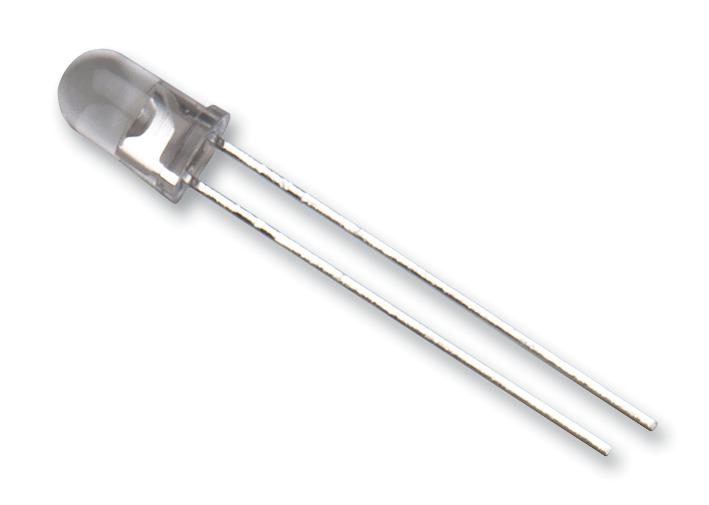

BROADCOM HLMPCB3AUV0DD High Brightness LED
These high intensity blue and green LED lamps are designed for outdoor signaling and advertising. Utilizing InGaN technology, they feature specific viewing angles of 15°, 23°, and 30° and employ advanced optical epoxy for high moisture and temperature resistance. Available in vivid blue (470nm) and green (525nm), they deliver well-defined spatial radiation patterns and high luminous output, suitable for traffic signs, variable message signs, and outdoor advertising. The package options include standoff and non-standoff configurations, meeting RoHS and UV stability standards.
BROADCOM HLMPCB3AUV0DD High Brightness LED Specifications:
- Color: Blue 470nm, Green 525nm
- Viewing Angles: 15°, 23°, 30°
- Maximum Forward Current: 30 mA
- Peak Forward Current: 100 mA
- Power Dissipation: 116 mW
- Operating Temperature Range: -40 to +85°C
- Storage Temperature Range: -40 to +100°C
- Reverse Voltage: 5 V
- Junction Temperature: 110°C
- Luminous Intensity Bin Limits: 3200-4200 mcd (U Bin), 4200-5500 mcd (V Bin), 5500-7200 mcd (W Bin), 7200-9300 mcd (X Bin)
- Dominant Wavelength: Green 519-539 nm, Blue 460-480 nm
- Spectral Half Width: Green 30 nm, Blue 23 nm
- Thermal Resistance: 240 °C/W Junction-to-Pin
- Lens construction: Optical grade epoxy, UV stabilized, moisture resistant
Buy the Avago Series High Brightness LED: HLMPCB3AUV0DD
Order the high intensity green and blue LED lamps online today for outdoor signage, traffic signals, and advertising displays. These LEDs feature rugged epoxy construction with UV inhibitors for superior moisture and temperature resistance, ensuring long-term performance. Perfect for variable message signs and outdoor advertising, they offer specific viewing angles of 15°, 23°, and 30°, with high luminous output and optimized optics. Easy to install in standoff or non-standoff configurations. Reliable, RoHS compliant, and designed for demanding outdoor environments—shop now for quick, secure online procurement.
Get Avago HLMPCB3AUV0DD high brightness LED lamps today—built for outdoor signaling and long-lasting reliability.
Frequently Asked Questions
Where can I buy BROADCOM HLMPCB3AUV0DD?
You can click on the BUY or RFQ button to purchase HLMPCB3AUV0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPCB3AUV0DD?
You can download the HLMPCB3AUV0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPCB3AUV0DD?
BROADCOM
