BROADCOM ACPLP347500E Power Drive Optocoupler
The ACPL-P347/W347 are high-performance optocouplers designed for driving SiC/GaN MOSFETs and IGBTs in power conversion, motor drives, and industrial inverters. Featuring a 1.0A peak output current, wide Vcc range (15V to 30V), and rail-to-rail output voltage, these devices deliver fast switching with 110 ns propagation delay and high common mode rejection. Their small stretched SO6 package ensures space-efficient designs, combined with UL and IEC/EN safety approvals for reliable industrial deployment and safety compliance in power applications.
BROADCOM ACPLP347500E Power Drive Optocoupler Specifications:
- Peak Output Current: 1.0A
- Vcc Range: 15V to 30V
- Propagation Delay: 110 ns maximum
- Propagation Delay Difference: 50 ns maximum
- Rail-to-rail output voltage
- Common Mode Rejection: 100 kV/us minimum at Vom = 1500V
- Input LED Current: 4.2 mA maximum with hysteresis
- Operating Temperature Range: -40°C to +105°C
- Safety Approvals: UL Recognized 3750V/5000V for 1 min, IEC/EN 60747-5-5, CSA
- Package: Stretched SO6
- Insulation Voltage: Viorm = 891V/1140V peak, UL/CSA compliant
- Storage Temperature: -55°C to +125°C
- Output Power Dissipation: 600 mW
- Output Voltage: up to 35 V peak
- Input to Output Test Voltages: up to 2,137 Vpeak
- Input Reverse Voltage: 5V
- Thermal Resistance (Junction to Ambient): LED 135°C/W, Detector 47°C/W
- Maximum Junction Temperature: 125°C

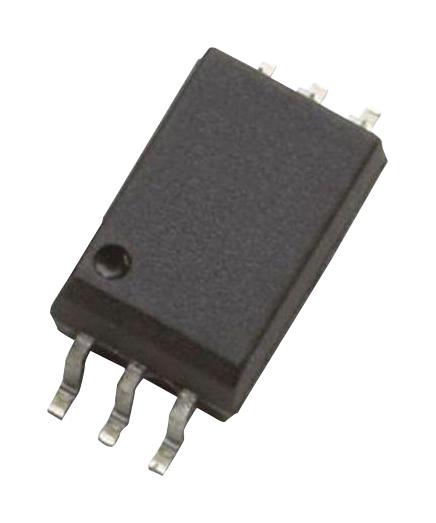

Buy the Buy Broadcom ACPL P347 Part Number 500E Online
Order the Broadcom ACPL-P347 now to get a high-current, fast-switching optocoupler specifically designed for efficient driving of SiC and GaN power transistors. This compact device offers rail-to-rail output, wide Vcc range, and high safety standards, making it ideal for industrial inverters, motor drives, and renewable energy systems. With UL recognition and IEC standards compliance, purchasing online ensures quick delivery of a reliable solution that enhances your power conversion efficiency and system performance.
Buy Broadcom ACPL-P347 optocoupler now and ensure high-speed, reliable drive for SiC/GaN MOSFETs and IGBTs in your power electronics systems.
Frequently Asked Questions
Where can I buy BROADCOM ACPLP347500E?
You can click on the BUY or RFQ button to purchase ACPLP347500E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLP347500E?
You can download the ACPLP347500E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLP347500E?
BROADCOM
