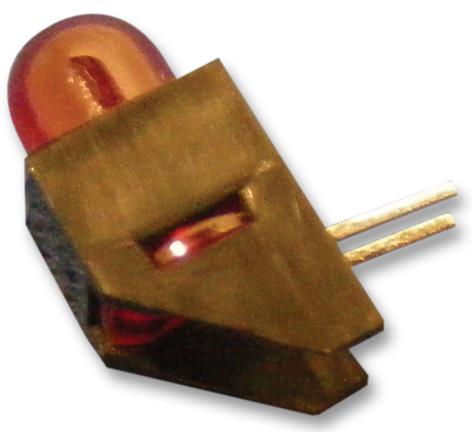

BROADCOM HLMP4700C00B2 Low Current Diffused LED
These low current diffused LED lamps are optimized for operation at 2 mA, providing consistent brightness for TTL and low power DC applications. They feature high efficiency, wide viewing angles, and are compatible with CMOS-MOS circuits. Available in various colors such as red, yellow, and green, with options for package styles including T-1 and T-13/4 sizes. Designed for telecommunications, portable equipment, and keyboard indicators, they are suitable for reliable indicator and display functions requiring minimal power consumption and high brightness. The LEDs have specific dimensions, electrical characteristics, and temperature ratings to ensure durability.
BROADCOM HLMP4700C00B2 Low Current Diffused LED Specifications:
- Package Size: T-1 (3 mm) and T-13/4 (5 mm)
- Color Options: Red, Yellow, Green
- Luminous Intensity at 2 mA: 1.5-50 mcd depending on model
- Forward Voltage: 1.8-2.2 V
- Peak Wavelength: 565-635 nm
- Spectral Line Halfwidth: 28-40 nm
- Capacitance: 1-18 pF
- Thermal Resistance Junction to Cathode: 260-290 °C/W
- Maximum Power Dissipation: 14-17.5 mW
- Peak Forward Current: 500 mA
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -40°C to 100°C
- RoHS Compliant
Buy the Avago Series Low Current LED Lamps: HLMP4700C00B2
Purchase Avago HLMP4700C00B2 LED lamps online today and enjoy high efficiency, consistent brightness, and low power consumption. Perfect for telecommunications, portable equipment, and indicator applications requiring durable and reliable LED components. These LEDs feature T-1 and T-13/4 packages, various color options, and meet RoHS standards. They deliver excellent luminous intensity at 2 mA, ensuring bright, clear indicators with minimal energy use. Order now to enhance your electronic projects with high-quality, cost-effective LED lighting.
Buy Avago HLMP4700C00B2 now and experience unmatched reliability and performance in low power indicator solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMP4700C00B2?
You can click on the BUY or RFQ button to purchase HLMP4700C00B2 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP4700C00B2?
You can download the HLMP4700C00B2 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP4700C00B2?
BROADCOM
