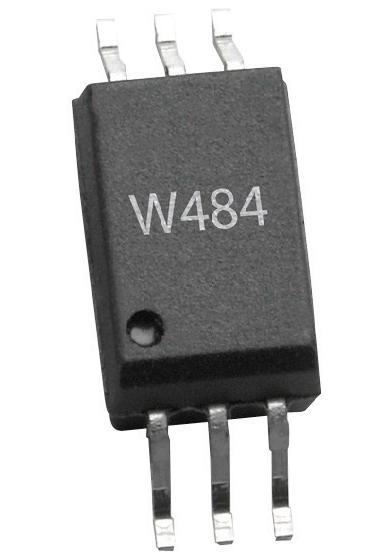

BROADCOM ACPLW484000E High CMR Intelligent Power Module
The BROADCOM ACPL-W484 is a high-performance optocoupler designed for demanding applications such as IPM interface isolation, isolated IGBT/MOSFET gate drive, and industrial inverters. It incorporates an AlGaAs LED and a photo detector with a built-in Schmitt trigger, ensuring logic-compatible waveforms. The totem pole output simplifies circuit design by eliminating the need for pull-up resistors. Its wide operating temperature range (-40°C to 105°C), high common-mode rejection, and safety approvals (UL, CSA, IEC/EN/DIN EN 60747-5-5) make it a robust and reliable solution for various industrial applications.
BROADCOM ACPLW484000E High CMR Intelligent Power Module Specifications:
- operating_temperature_range: -40° C to 105° C
- propagation_delay: tPHL / tPLH = 150/120 ns
- pulse_width_distortion: PWD = 90 ns
- propagation_delay_difference: Min/Max = -130/130 ns
- operating_voltage_range: 4.5 to 30 Volts
- common_mode_rejection: 30 kV/ µ s at VCM = 1000 V
- package_clearance_creepage: 8 mm
- ul_rating: 5000 Vrms for 1 minute
- iec_en_din_en_60747_5_5_approval: VIORM = 1140 Vpeak
