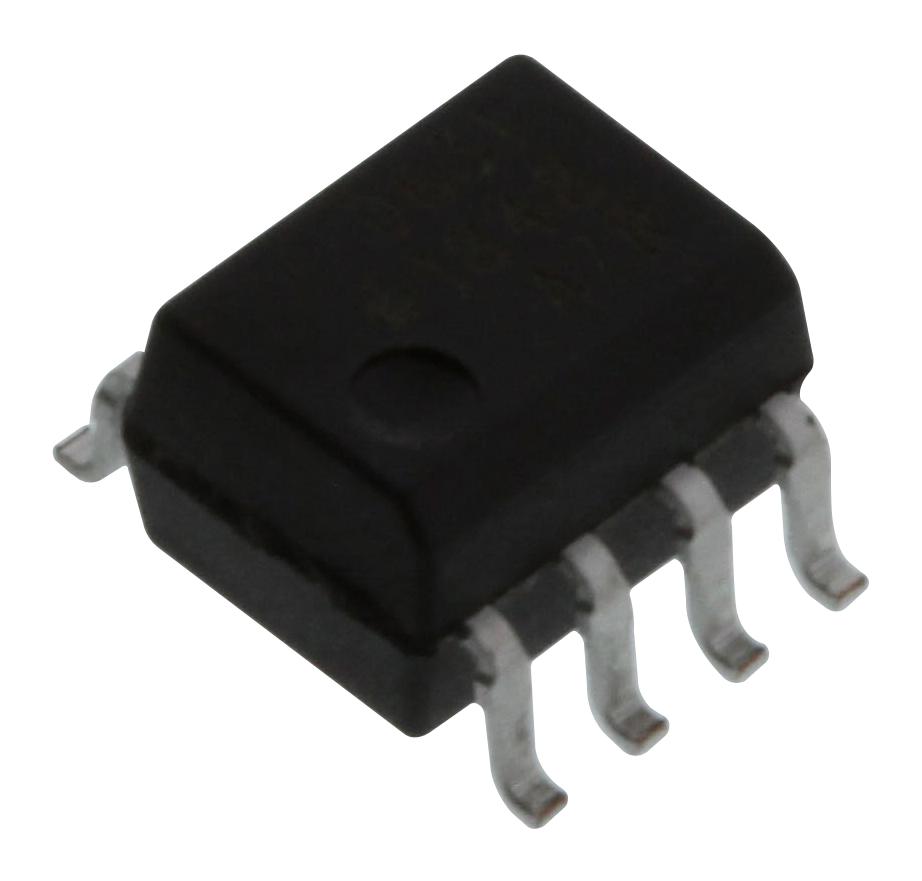

BROADCOM HCPL0631000E High-Speed Optocoupler
The HCPL-0631-000E is a high-speed optocoupler combining a GaAsP LED and high-gain photodetector with an open-collector output, offering high common-mode rejection and AC/DC performance. Its enable input allows strobed operation, facilitating high-speed logic interfacing and precise signal isolation. Suitable for environments with high electromagnetic interference, it supports TTL/LSTTL compatibility, is tested across -40°C to 85°C, and features safety approvals for reliable use in sensing, instrumentation, and communication systems. Its design ensures excellent electrical insulation and noise immunity, making it ideal for sensitive digital and power management applications.
BROADCOM HCPL0631000E High-Speed Optocoupler Specifications:
- Input-Output Isolation Voltage: 3750 V, 50% RH, 1 min
- Input-to-Output Insulation Resistance: >10^9 Ω at 500V
- Input Forward Voltage: 1.2-1.8 V at 10 mA
- Input Reverse Voltage: 5 V (DIP), 3 V (Widebody)
- Max Operating Temperature: 85°C
- Storage Temperature: -40°C to 125°C
- Input Forward Current: 20 mA (max), 0 to 15 mA typical
- Supply Voltage: 7 V (max), recommended 4.5-5.5 V
- Output Collector-Emitter Voltage: 7 V
- Output Power Dissipation: 85 mW (single), 60 mW (dual)
- Propagation Delay: 20-50 ns
- Common Mode Rejection: >15,000 V/μs at V_C = 1kV
- Trigger Current (High/Low): 5-15 mA / 0-0.8 V on enable input
- Test Voltage (Input-Output): 3750 V for 1 min
- Certifications: UL, CSA, IEC/EN 60747-5-5
- Package Options: 8-Pin DIP, SOIC-8, widebody versions
Buy the Buy Avago HCPL-0631 000E Part Number HCPL-0631-000E Online
Purchase the Avago HCPL-0631-000E online today to benefit from high common-mode rejection, fast switching speeds, and reliable electrical isolation. This precision device ensures noise immunity in demanding environments such as instrumentation, power systems, and communication interfaces. Its wide temperature range and safety certifications guarantee performance and durability. Whether you need a single or dual channel version, ordering online provides quick access to this essential component, enabling you to enhance system reliability, improve signal integrity, and optimize overall performance with ease.
Order your Avago HCPL-0631-000E high-speed optocoupler today and ensure robust digital isolation and noise immunity for your sensitive systems.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0631000E?
You can click on the BUY or RFQ button to purchase HCPL0631000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0631000E?
You can download the HCPL0631000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0631000E?
BROADCOM
