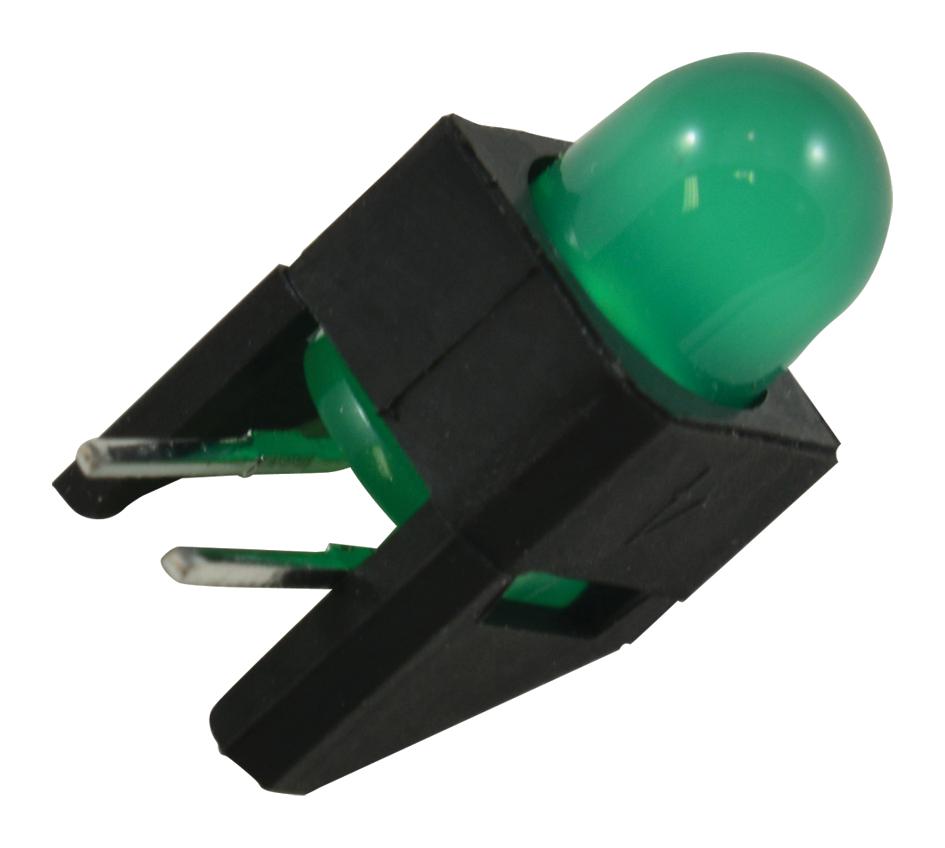

BROADCOM HLMP3507D00B2 Green Diffused LED
The HLMP-3507-D00B2 is a 5mm tinted diffused LED lamp designed for general purpose indicator applications. It features balanced diffusing elements, tints, and optical design to provide high light output and a wide viewing angle. The LED offers high intensity with selected minimum brightness levels, reliable and rugged construction, and emits a GaP green color. It is suitable for various applications in consumer electronics, industrial equipment, and automation systems, ensuring clear, vibrant illumination with broad viewing angles and durable performance.
BROADCOM HLMP3507D00B2 Green Diffused LED Specifications:
- Package Size: 5 mm (T-1 3/4 diameter)
- Color: GaP Green
- Luminous Intensity: 47 - 162.4 mcd (bin ranges)
- Peak Wavelength: 565 nm
- Viewing Angle: 60 degrees
- Forward Voltage: 2.1 - 2.7 V at 10mA
- Average Forward Current: 20 - 25 mA
- Peak Forward Current: 90 mA
- Power Dissipation: 135 mW
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Absolute Max Ratings: Peak Forward Current 90 mA, Forward Voltage up to 27 V, Power Dissipation 135 mW
- Lead Material: Phosphor-doped GaP
- Mechanical Package: T-13/4 (5 mm)
- Package Dimensions: Diameter approximately 5 mm, height varies with encapsulant
- Reliability: UL Certified, Rugged design for industrial use
Buy the Avago HLMP-3507 U–Reliable Green Indicator for Industrial Applications
Purchase the Avago HLMP-3507 Green Diffused LED online today to ensure high brightness, wide viewing angles, and reliable operation for your indicator needs. This 5mm LED is ideal for industrial, electronic, and automation projects. Its rugged design, high luminous intensity, and broad viewing angles make it suitable for a range of applications, providing clear and vibrant illumination. Order now and enhance your products with dependable LED indicators that deliver consistent performance, ease of installation, and long-lasting durability.
Order your Avago HLMP-3507 LED today and equip your projects with bright, durable indicator lighting for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy BROADCOM HLMP3507D00B2?
You can click on the BUY or RFQ button to purchase HLMP3507D00B2 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP3507D00B2?
You can download the HLMP3507D00B2 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP3507D00B2?
BROADCOM
