BROADCOM AEMDCM3LZ1002 High Brightness SMT LEDs
The high brightness green and blue surface-mount LEDs from Broadcom are designed for outdoor signage and monocolor displays. These SMT round lamps feature advanced optical-grade epoxy for superior performance, a typical viewing angle of 33°, and compatibility with industrial reflow soldering processes. They are supplied in tape and reel for easy assembly, with strict handling precautions due to their ESD sensitivity. Suitable for LED signage, message signs, and decorative lighting, these LEDs offer high luminous intensity, excellent optical characteristics, and robust construction for reliable operation in harsh environments.
BROADCOM AEMDCM3LZ1002 High Brightness SMT LEDs Specifications:
- Color: Green, Blue
- Package Type: Round InGaN
- Viewing Angle: 33°
- Luminous Intensity: Green: 12000-21000 mcd, Blue: 1900-3200 mcd
- Dominant Wavelength: Green: 519-539 nm, Blue: 460-480 nm
- Peak Wavelength: Green: 521 nm, Blue: 466 nm
- Forward Voltage: Green: 3.0-3.8 V, Blue: 2.8-3.8 V
- DC Forward Current: Green: 30 mA, Blue: 20 mA
- Peak Forward Current: 100 mA
- Power Dissipation: Green: 114 mW, Blue: 76 mW
- Absolute Maximum Junction Temperature: 110°C
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Thermal Resistance (Junction to pin): Green: 270°C/W, Blue: 480°C/W
- Wave Length Tolerance: ±1.0 nm
- Reflow Soldering: Max 2 times, Profile conforming to guidelines
- Handling Level: MSL3
- Moisture Sensitivity: Level 3

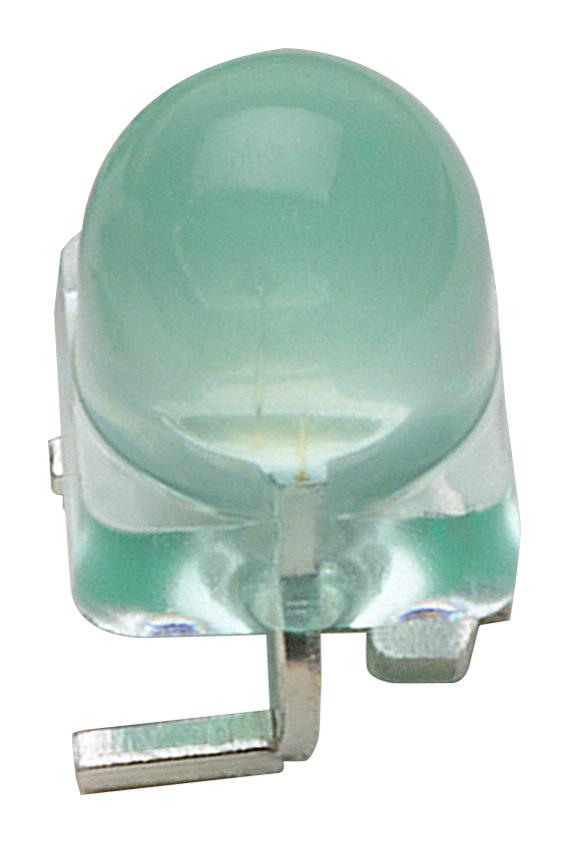

Buy the Buy Broadcom High Brightness Green and Blue SMT Round Lamps Part Number AEMDCM3LZ1002 Online
Order Broadcom high brightness green and blue SMT round LEDs today from our online store. Designed for outdoor signage, these LEDs feature a 33° viewing angle and superior optical epoxy for durability. Their advanced surface-mount design ensures easy reflow soldering, making assembly efficient and reliable. Perfect for message signs and monocolor displays, these LEDs deliver high luminous intensity, excellent color consistency, and robust construction suitable for harsh environments. Ensure optimal performance by following handling and storage recommendations for long-term reliability.
Get Broadcom high brightness green and blue LED lamps today—designed for outdoor signs and displays with long-lasting durability and high optical performance.
Frequently Asked Questions
Where can I buy BROADCOM AEMDCM3LZ1002?
You can click on the BUY or RFQ button to purchase AEMDCM3LZ1002 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part AEMDCM3LZ1002?
You can download the AEMDCM3LZ1002 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of AEMDCM3LZ1002?
BROADCOM
