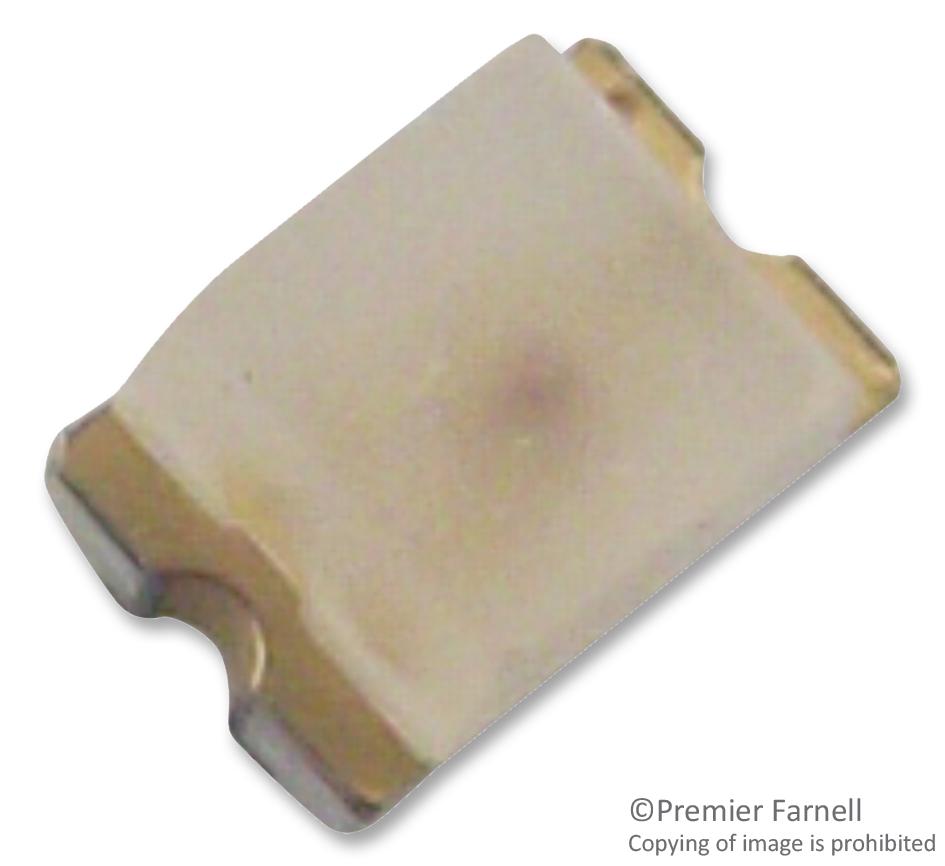

BROADCOM HSMSC150 Surface Mount Chip LED
Surface mount chip LEDs designed for versatile backlighting, side-lighting, and front panel illumination applications. Available in various footprints and profiles, these diffused optics LEDs ensure bright, uniform illumination. The HSMx series features industry-standard 3.2 x 1.6 mm, 2.0 x 1.25 mm, and 1.6 x 0.8 mm footprints with profiles from 0.4 mm to 1.5 mm. Suitable for LCD backlighting and keypad indicators, they support IR reflow soldering and are shipped in tape and reel for automated placement. Temperature range is -40°C to +85°C, with high reliability across many color options.
BROADCOM HSMSC150 Surface Mount Chip LED Specifications:
- Footprints: 3.2 x 1.6 mm, 2.0 x 1.25 mm, 1.6 x 0.8 mm
- Profiles: 0.4 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.5 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Supports IR reflow soldering
- Delivered in tape and reel: 4000 units for larger packages, 3000 units for smaller
- Colors available: Green, Yellow, Orange, Red
- Electrical Ratings vary by model, typical forward current up to 25–30 mA
- Luminous intensity range from 10 mcd to over 4500 mcd depending on color
- Viewing angle: ~130°, diffused optics for uniform light
- Maximum Power Dissipation up to 78 mW
- Junction Temperature: 95°C
Buy the Avago HSMSC150 – Reliable Surface Mount Diffused LED for Industrial Applications
Purchase the Avago HSMSC150 surface mount diffused LED online today to enhance your industrial backlighting, LCD, and front panel illumination projects. These reliable LEDs are manufactured for optimal brightness and uniform light distribution, supporting infrared reflow soldering for easy assembly. With industry-standard footprints, multiple profiles, and wide temperature tolerance, they are ideal for keypads, push-buttons, and LCD backlighting in demanding industrial environments. Order now for fast delivery and superior performance in your engineering solutions.
Get Avago HSMSC150 today—built for precision and long-lasting durability in backlighting and indicator applications.
Frequently Asked Questions
Where can I buy BROADCOM HSMSC150?
You can click on the BUY or RFQ button to purchase HSMSC150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMSC150?
You can download the HSMSC150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMSC150?
BROADCOM
