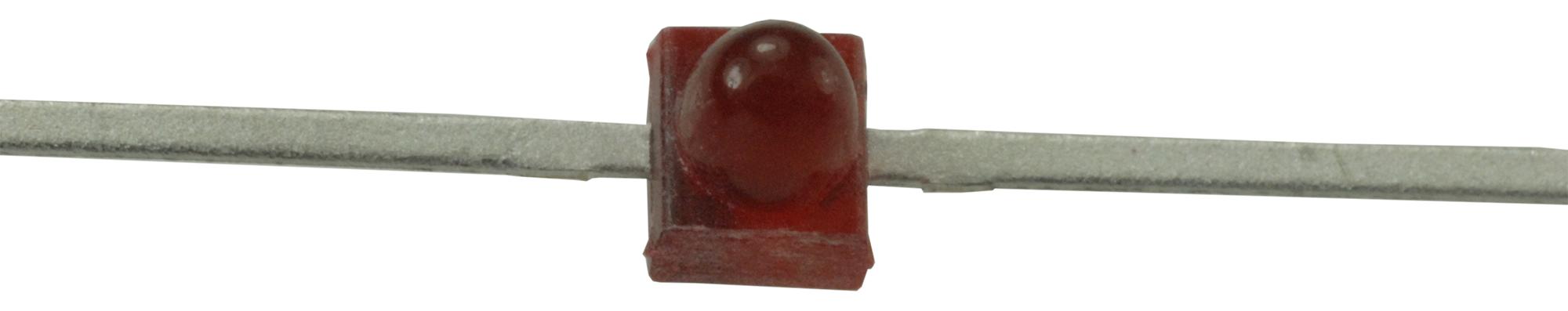

BROADCOM HLMP6000 Red LED Indicator
The HLMP-6000 is a subminiature, standard red LED lamp featuring a diffused lens for a wide viewing angle. Designed as an indicator, it uses a tinted/diffused dome to provide high contrast between ON and OFF states. The device is constructed by mounting LED chips on axial leads within a molded epoxy package, making it suitable for space-constrained applications. Common uses include signaling and industrial indicator purposes. Please note that high market demand may lead to extended lead times and fluctuating delivery schedules. Discount programs are not applicable to this product.
BROADCOM HLMP6000 Red LED Indicator Specifications:
- Type: Subminiature LED
- Color: Red
- Lens: Diffused
- Package: Axial lead, molded epoxy
- Viewing Angle: Wide
- Forward Voltage: Typically 2.0 V at 10mA
- Forward Current: 10mA
- Reverse Voltage: 5V
- Peak Wavelength: 655 nm
- Dominant Wavelength: 640 nm
- Spectral Line Half Width: 24 nm
- Thermal Resistance: 170 °C/W junction-to-lead
- Luminous Intensity: 1.2 mcd at 10mA
- Operating Temperature Range: -55°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Max Peak Current: 90 mA (pulsed)
- Soldering Temperature: 260°C for 20 seconds (surface mount), 5 seconds (through hole)
Buy the Broadcom Series HLMP-6000 Red LED Lamp: HLMP6000
Purchase the Broadcom HLMP-6000 red LED indicator online today and ensure reliable performance in your signaling and indicator projects. This subminiature LED features a diffused lens for wide viewing angles and high contrast, perfect for industrial and space-constrained applications. With a typical forward voltage of 2.0V and an intensity of 1.2 mcd at 10mA, it delivers clear, consistent illumination. Its durable epoxy package and wide operating temperature range make it suitable for various environments. Secure your supply now and benefit from quick delivery and trusted quality for your electronic projects.
Order your Broadcom Series HLMP-6000 red LED indicator today and enhance your signaling systems with dependable space-efficient illumination.
Frequently Asked Questions
Where can I buy BROADCOM HLMP6000?
You can click on the BUY or RFQ button to purchase HLMP6000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP6000?
You can download the HLMP6000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP6000?
BROADCOM
