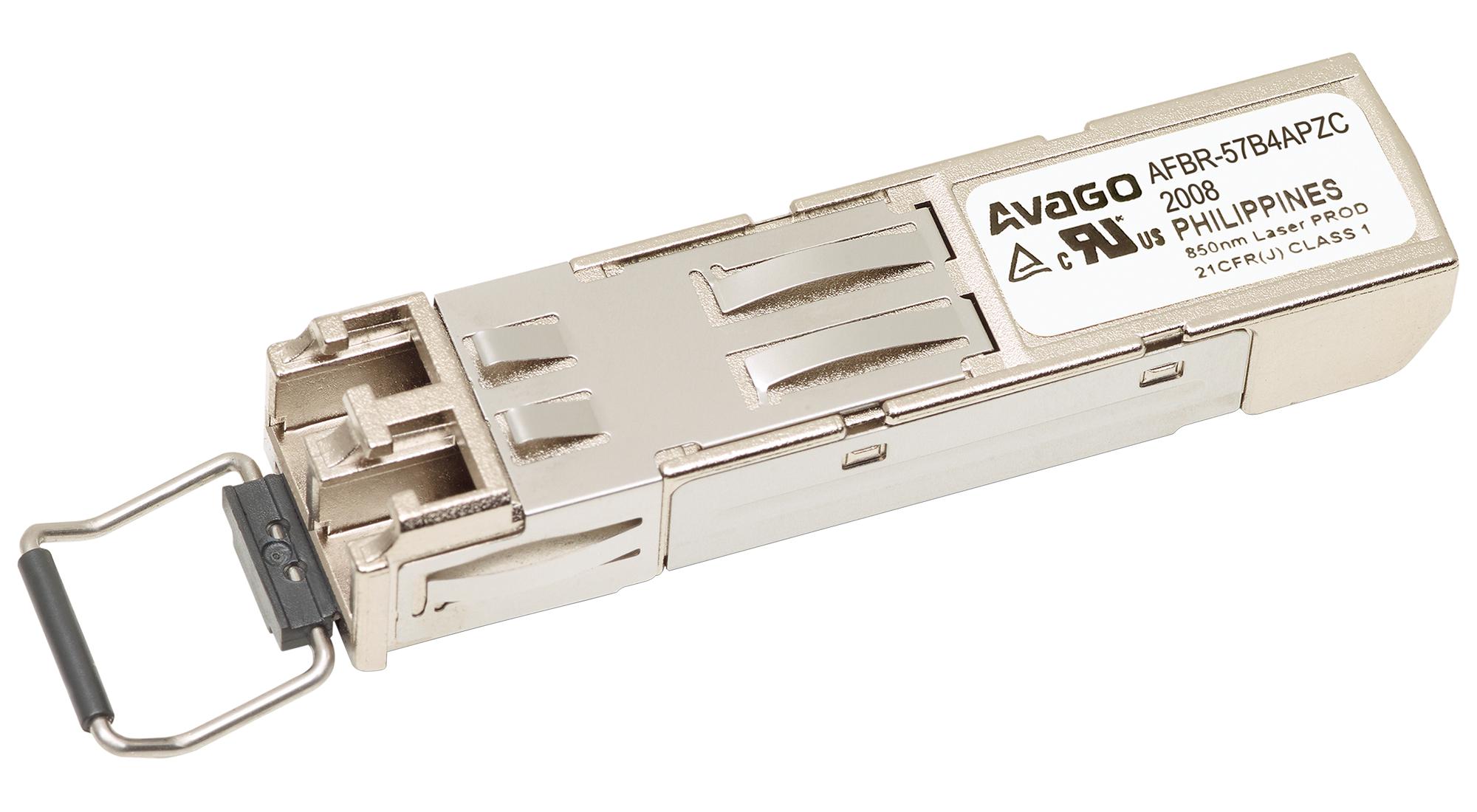

BROADCOM AFBR57B4APZC Optical Transceiver
The DC-50 MBaud multimode LC duplex transceiver supports data transmission up to 2 km over multimode fiber, featuring conformal coating for harsh environments. It integrates an 850 nm VCSEL laser and a PIN photodiode for efficient signal conversion, with a compact SFP form factor compliant with IEEE standards. The module provides real-time digital diagnostics via its enhanced interface, supporting remote monitoring of temperature, voltage, and optical power. It’s optimized for industrial, power substation, and HVDC applications requiring reliable high-speed optical communication in demanding settings.
BROADCOM AFBR57B4APZC Optical Transceiver Specifications:
- Data rate support from DC to 50 MBaud
- Maximum link distance of 2 km using 62.5/125 µm multimode fiber
- Operating temperature range: -40°C to +85°C
- Supply Voltage: 3.3V DC
- Transmitter: 850 nm Class 1 laser VCSEL with integrated driver
- Receiver: PIN photodiode with integrated signal processing
- Dimensions: Standard SFP package, with mechanical dimensions suitable for host systems
- Conformal coating for enhanced environmental robustness
- Compliance: RoHS, IEEE 802.3 compatible, IEC 60825-1 Class 1 laser safety
- Low power consumption and EMI immunity
- Digital diagnostics interface supports real-time monitoring of temperature, supply voltage, and optical power
- Connector: LC duplex, hot-pluggable, compliant with SFP MSA
Buy the Broadcom AFBR-57B4APZC – Reliable Optical Transceiver for Industrial Applications
Upgrade your optical communication setup with the Broadcom AFBR-57B4APZC transceiver. Designed for industrial automation, power substations, and HVDC, this module supports 50 MBaud data rates over 2 km using multimode fiber. Featuring conformal coating for durability, an enhanced digital diagnostics interface, and compliance with global standards, it ensures robust, high-speed data transmission. Easy to install, energy-efficient, and reliable, this transceiver provides the perfect solution for industrial networking and mission-critical applications.
Buy Broadcom AFBR-57B4APZC now and experience unmatched reliability and performance in harsh industrial environments.
