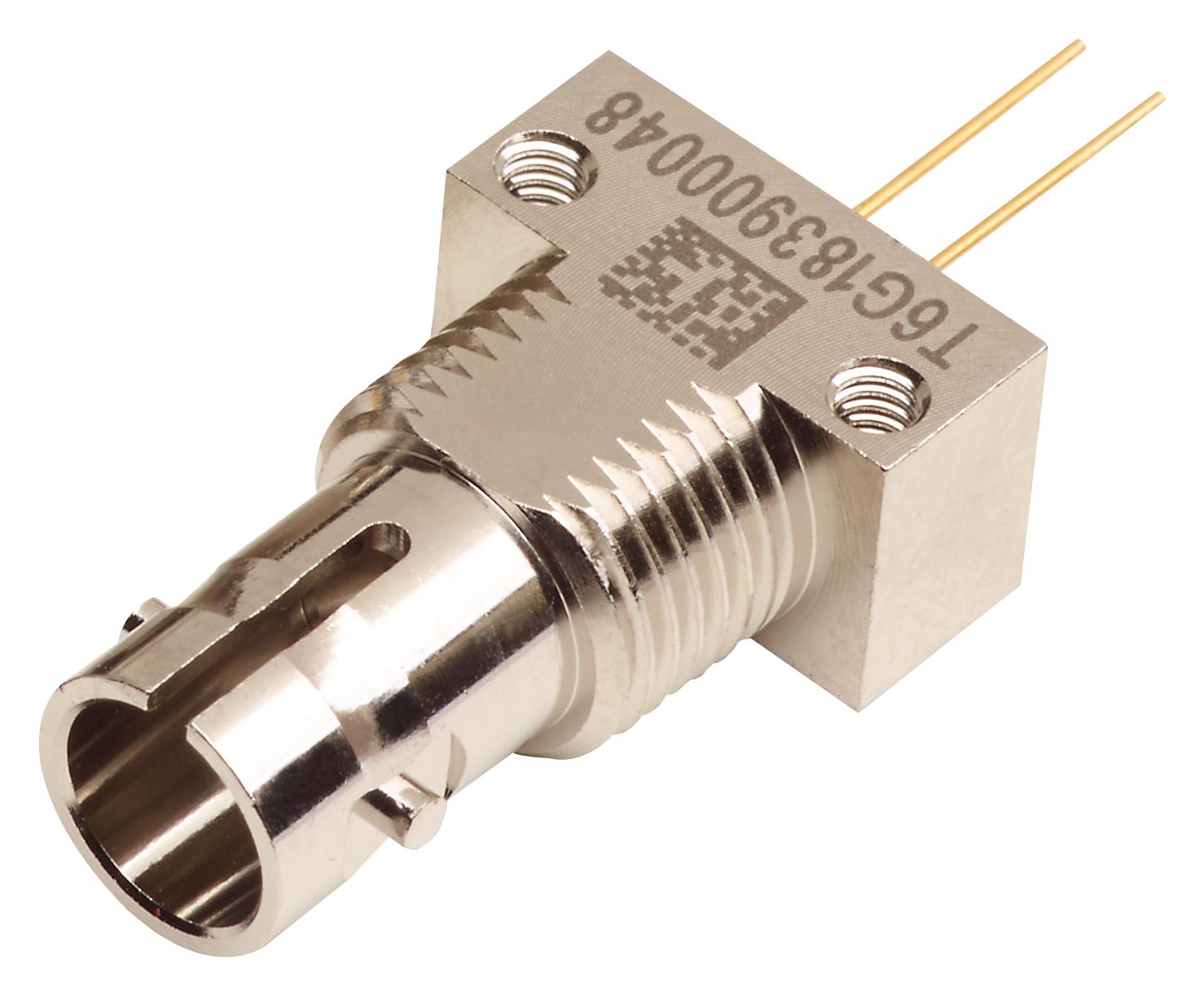

BROADCOM AFBRPOC406L Optical Power Converter
The AFBR-POC406L optical power converter from Broadcom is a high-efficiency component designed to convert optical power into electrical power for demanding industrial environments. It offers a typical output voltage of 6.2V supporting 5 VDC applications and can supply up to 720 mW from an optical input power of 1.5W. Engineered with RoHS compliance and robust metal housing, it features threaded ports for fiber coupling, making it ideal for powering sensors, transducers, and RF imaging coils. Its thermal design ensures easy integration and thermal management in various applications.
BROADCOM AFBRPOC406L Optical Power Converter Specifications:
- Response Optical Spectrum Range: 800-850 nm
- Maximum Electrical Output Power: 720 mW at 1.5 W optical input power
- Output Voltage: 6.2 V at maximum power
- Output Current: 120 mA at 1.5 W optical input power
- Optical Input Power Range: up to 1.5 W
- Fiber Core Diameter: 62.5 μm
- Numerical Aperture (NA): 0.22 to 0.375
- Fiber Length: Application-specific
- Storage Temperature: -40°C to +85°C
- Operating Case Temperature: -40°C to +85°C
- Response Optical Spectrum Range: 800-850 nm
- Dimensions: Compact metal housing with threaded ports for fiber connection
- Electrical isolation and suited for power over fiber applications
- Compliance: RoHS, suitable for industrial and medical transducer power supply
Buy the Broadcom Series Industrial Optical Power Converter: AFBRPOC406L
Enhance your industrial systems with the Broadcom AFBR-POC406L optical power converter, delivering up to 720 mW at 6.2V. Designed with a durable metal housing and threaded fiber ports, it ensures reliable power conversion from optical signals to electrical power in challenging environments. Perfect for powering sensors, transducers, MRI coils, and RF imaging equipment, this RoHS-compliant device guarantees performance and easy thermal management. Purchase online today for seamless integration into your high-voltage applications.
Buy Broadcom AFBR-POC406L now and experience unmatched reliability and high power efficiency for demanding industrial applications.
Frequently Asked Questions
Where can I buy BROADCOM AFBRPOC406L?
You can click on the BUY or RFQ button to purchase AFBRPOC406L from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part AFBRPOC406L?
You can download the AFBRPOC406L datasheet or visit the BROADCOM website for support.
Who is the manufacturer of AFBRPOC406L?
BROADCOM
