BROADCOM HCPL073L000E Optocoupler High-Gain
This high-gain, low input current optocoupler is compatible with LVTTL and LVCMOS logic levels, making it ideal for ground isolation, line receivers, high-voltage insulation, RS-232C line reception, telephone ring detection, and voltage status indication. It features dual supply voltages of 3.3V and 5V, low power consumption, and a high current transfer ratio guaranteed over 0°C to 70°C. The device allows gain bandwidth adjustment via a base terminal, offers output currents up to 60mA, and is UL, IEC/EN, DIN EN 60747-5-2, and CSA certified, ensuring safety and reliability.
BROADCOM HCPL073L000E Optocoupler High-Gain Specifications:
- Dual Supply Voltages: 3.3V / 5V
- Input Current: 0.5 mA minimum
- Output Current: Up to 60 mA
- Current Transfer Ratio: Guaranteed minimum 400% at 0.5 mA LED current
- Temperature Range: 0°C to +70°C
- Peak Forward Voltage: 1.4 to 1.7 V
- Isolation Voltage: 3750 Vrms (Momentary)
- Safety Certifications: UL, IEC/EN/DIN EN 60747-5-2, CSA
- Package Type: Surface mount SOIC-8 footprint
- Gain Bandwidth Adjustment: Via base access terminal
- Power Dissipation: Typical low power consumption
- High-speed operation with propagation delays under 100 us
- RC (Series resistor) recommended for transient immunity
- Leakage Current Input-Input: 0.005 pA
- Insulation Resistance: > 10^12 Q at 500 V

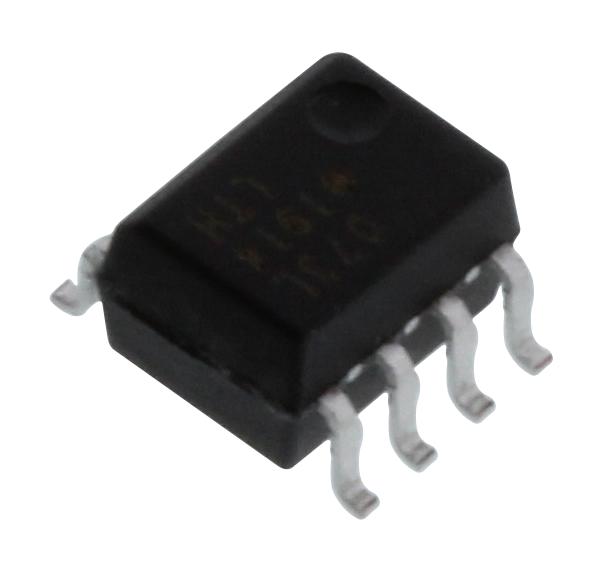

Buy the Avago HCPL-073L – Reliable Optical Isolator for Industrial Applications
Purchase the Avago HCPL-073L optocoupler online today and enjoy dependable ground isolation with high current transfer ratio. Designed for LVTTL/LVCMOS systems, it offers low input current requirements of only 0.5mA, making it ideal for low power applications. The device operates over 0°C to 70°C, providing consistent performance with a high output current capacity of up to 60mA. Certified by UL, IEC/EN, and CSA, it guarantees safety and reliability in industrial automation, communication, and high-voltage insulation setups. Order now to upgrade your system's safety and efficiency.
Order your Avago HCPL-073L optocoupler today and ensure reliable ground isolation and high-speed logic interface performance for your industrial projects.
Frequently Asked Questions
Where can I buy BROADCOM HCPL073L000E?
You can click on the BUY or RFQ button to purchase HCPL073L000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL073L000E?
You can download the HCPL073L000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL073L000E?
BROADCOM
