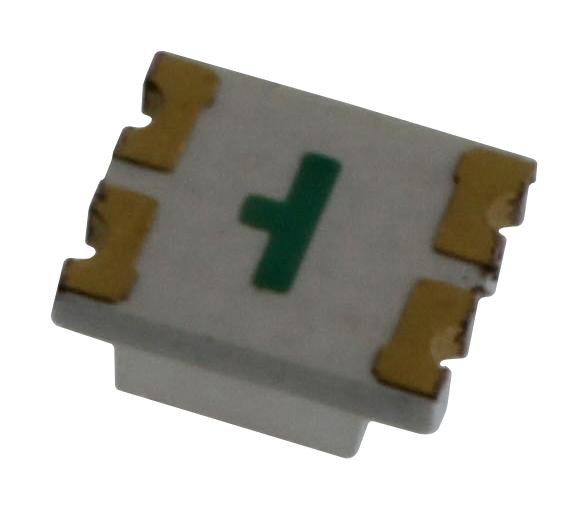

BROADCOM HSMFC157 Bi-color Surface Mount LED
The HSMF-C157 bi-color surface mount LEDs are designed for backlighting and indicator applications in compact spaces, featuring diffused optics and compatibility with reflow soldering. Available in orange/green colors, these LEDs operate within -40°C to +85°C, delivering high efficiency and reliable performance. They are suitable for push-button backlighting, symbol indication, status indicators, and front panel lighting. The package footprint of 3.2 x 2.7 mm and wide viewing angles make them ideal for front panel and backlighting in various industrial and consumer devices, ensuring consistent brightness and easy installation.
BROADCOM HSMFC157 Bi-color Surface Mount LED Specifications:
- Package size: 3.2 x 2.7 mm footprint
- Operating temperature: -40°C to +85°C
- Max forward current: 20 mA
- Power dissipation: 52-65 mW depending on color
- Reverse voltage: 5 V
- Viewing angle: 170 degrees
- Peak wavelength: 570-630 nm depending on color
- Luminous intensity: 2.50 to 28.50 mcd depending on color
- Compatible with IR reflow soldering
- Diffused optics for uniform light output
- Storage and soldering temperature ranges: -40°C to +85°C
- Accepts standard industry handling and packaging, including 8 mm tape on reels
Buy the Avago HSMF-C157 – Reliable Bi-color Surface Mount LEDs for Industrial Applications
Enhance your electronic projects with the Avago HSMF-C157 bi-color surface mount LED, offering compact size, diffused optics, and reliable operation. Perfect for backlighting, front panel indicators, and status signals, these LEDs are compatible with reflow soldering processes for easy assembly. Operating within -40°C to +85°C, they provide consistent brightness and broad viewing angles. Ideal for industrial, consumer, and medical devices, they ensure excellent performance, durability, and easy integration, making them a top choice for engineers and designers seeking high-quality indicator lights.
Order your Avago SeriesHSMF-C157 orange/green surface mount LEDs today and enhance your backlighting and indicator solutions with dependable, high-quality components.
