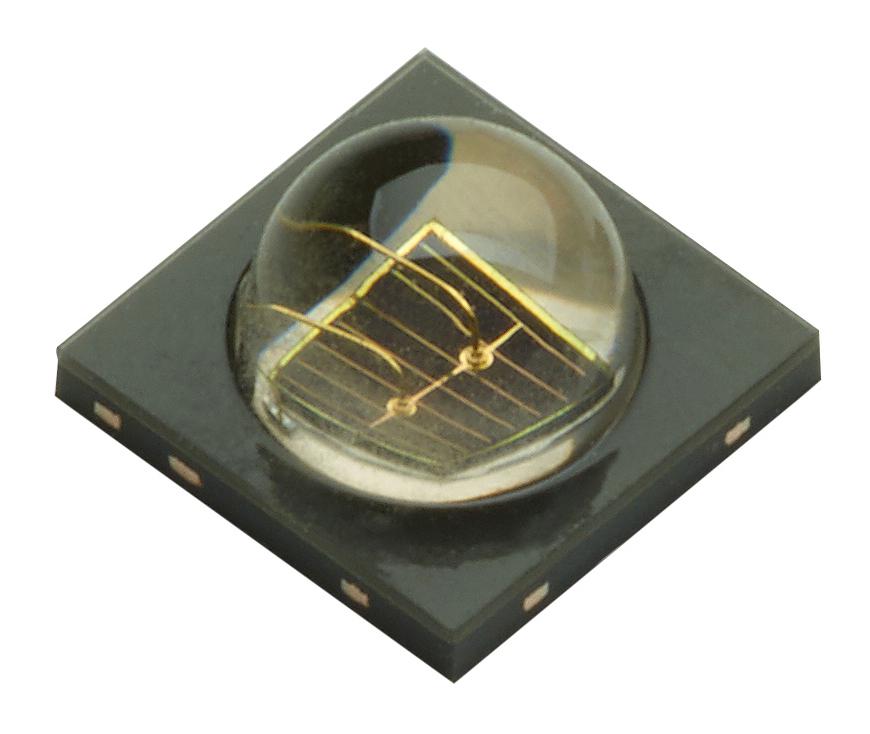

BROADCOM ARE199D000000 Infrared LED
The Broadcom high-power IR LEDs operate at 850 nm and 940 nm wavelengths, ideal for infrared illumination, surveillance, and gesture recognition. Packaged in a 3.85 mm x 3.85 mm surface-mount platform with viewing angles of 90° and 150°, these LEDs feature high radiant intensity and power, low forward voltage, and are compatible with reflow soldering. Suitable for CCTV, security systems, and optical applications, they ensure reliable long-lasting performance in various environmental conditions, providing efficient IR light for enhanced imaging and sensing.
BROADCOM ARE199D000000 Infrared LED Specifications:
- Peak Wavelength: 850 nm or 940 nm
- Viewing Angles: 90° or 150°
- Radiant Flux: Up to 1,000 mW at 850 nm, 935 mW at 940 nm
- Radiant Intensity: 160 to 630 mW/sr
- Forward Voltage: 1.8 V at 1A for 850 nm, 2.5 V at 1A for 940 nm
- Peak Forward Current: 3000 mA
- Power Dissipation: Up to 3600 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Thermal Resistance: Approximately 10°C/W from junction to solder point
- Package Size: 3.85 mm x 3.85 mm, surface-mount
Buy the Broadcom Series Infrared LED: ARE199D000000
Purchase the Broadcom infrared LED ARE199D000000 online today and enhance your surveillance or IR illumination systems with high radiant intensity and reliable performance. Designed for surface-mount applications, these LEDs operate efficiently at 850 nm and 940 nm wavelengths, featuring high radiant flux, low forward voltage, and compatible with reflow soldering. Whether for CCTV, gesture recognition, or security systems, this LED offers excellent reliability and long-lasting performance. Order now and ensure your system benefits from precise infrared illumination.
Get Broadcom IR LED ARE199D000000 today—built for precision, high radiant power, and long-lasting durability in surveillance and optical systems.
Frequently Asked Questions
Where can I buy BROADCOM ARE199D000000?
You can click on the BUY or RFQ button to purchase ARE199D000000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ARE199D000000?
You can download the ARE199D000000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ARE199D000000?
BROADCOM
