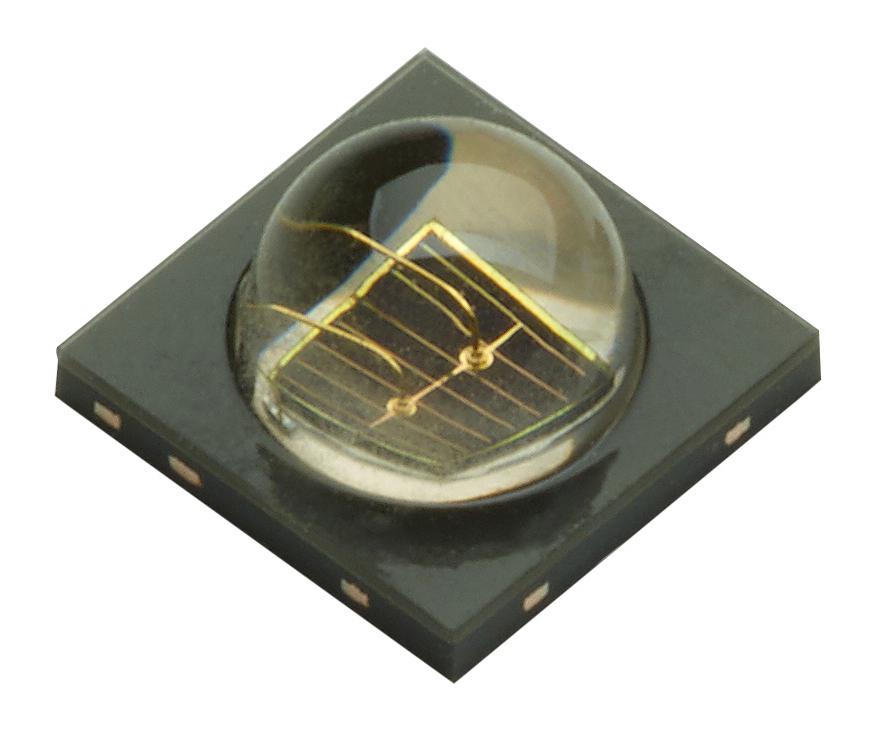

BROADCOM ARE189D000000 Infrared LED
The Broadcom high-power IR LEDs operate at peak wavelengths of 850 nm and 940 nm, suitable for infrared illumination, surveillance, and gesture recognition. Packaged in a compact 3.85 mm x 3.85 mm surface-mount platform, these LEDs feature viewing angles of 90° and 150°, high radiant intensity and power, and low forward voltage. Compatible with reflow soldering, they are ideal for security cameras, CCTV, and optical sensor applications. Their robust design ensures reliability and ease of assembly in diverse environments.
BROADCOM ARE189D000000 Infrared LED Specifications:
- Peak Wavelength: 850 nm or 940 nm
- Viewing Angles: 90° or 150°
- Radiant Flux: 160 to 630 mW (typical 685 to 1340 mW)
- Radiant Intensity: 160 to 850 mW/sr
- Forward Voltage: 1.8V to 3.6V depending on model
- Peak Forward Current: 3000 mA
- Power Dissipation: 2500 to 3600 mW
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Breif Description: Surface-mount, high-power IR LEDs for surveillance and optical applications with high radiant output.
Buy the Broadcom Series Infrared Emitting Diodes: ARE189D000000
Purchase the Broadcom infrared LED series now and benefit from high radiant power, low forward voltage, and precise wavelength options suitable for security and detection systems. These surface-mount LEDs are compatible with reflow soldering and come in compact packages with viewing angles of 90° and 150°, ensuring optimal illumination and sensor performance across various applications. Reliable, efficient, and easy to assemble, these LEDs are your dependable choice for infrared illumination solutions.
Order your Broadcom Series infrared LEDs today and enhance your optical sensor and surveillance projects with high radiant intensity and reliable performance.
Frequently Asked Questions
Where can I buy BROADCOM ARE189D000000?
You can click on the BUY or RFQ button to purchase ARE189D000000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ARE189D000000?
You can download the ARE189D000000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ARE189D000000?
BROADCOM
