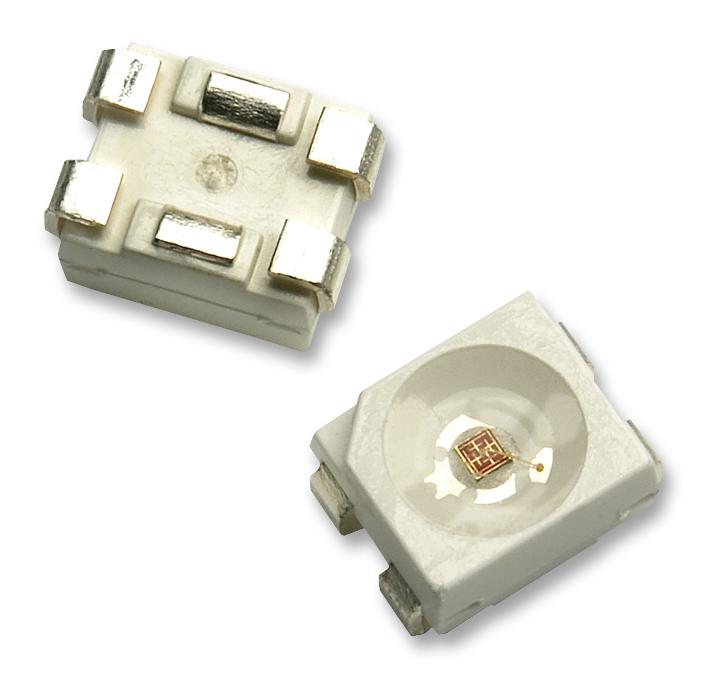

BROADCOM ASMTQRBDAEF0E Surface Mount LED
The Super 0.5 W Power PLCC-4 SMT LED features high reliability and efficient heat dissipation, making it suitable for automotive, signage, and electronic applications. It operates under harsh conditions with a wide temperature range and has a compact PLCC-4 package measuring 3.2 by 2.8 mm with a thickness of 1.9 mm. Designed with AllnGaP technology, it provides high optical efficiency, a wide viewing angle of 120°, and comes in red and amber colors. The LED is packaged in tape and reel for easy assembly, with a low thermal resistance of 60°C/W and JEDEC MSL2 rating.
BROADCOM ASMTQRBDAEF0E Surface Mount LED Specifications:
- Package Dimensions: 3.2 mm x 2.8 mm x 1.9 mm
- Technology: AllnGaP
- Colors Available: Red, Amber
- Luminous Flux: Min. 11.5 Im, Typ. 16.5 Im, Max. 19.5 Im at 150 mA
- Peak Wavelength: 624.1 nm (Red), 596.2 nm (Amber)
- Viewing Angle: 120°
- Forward Voltage: Max. 2.95 V at 150 mA
- Peak Forward Current: 300 mA
- Power Dissipation: 450 mW
- Thermal Resistance: 60°C/W
- Operating Temperature: -40°C to +120°C
- Storage Temperature: -40°C to +120°C
- Encapsulation: Silicone resin
- Lead Finish: Silver plating
- Package: Tape and reel with 8mm carrier tape or 7-inch reel
- JEDEC Level: MSL2
Buy the Avago ASMT-QxBD-Axxxx – Reliable Surface Mount LED for Industrial Applications
Order the Avago ASMT-QxBD-Axxxx surface mount LED today for reliable performance in automotive, signage, and industrial applications. Its compact PLCC-4 package with high luminous flux, wide viewing angle, and excellent thermal management ensures optimal brightness, durability, and efficiency. Suitable for harsh environments, it offers consistent quality, easy tape and reel packaging for automated assembly, and complies with JEDEC MSL2 standards. Perfect for demanding applications, this LED provides long-term performance and superior optical characteristics.
Get Avago ASMT-QxBD-Axxxx today—built for precision, high efficiency, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy BROADCOM ASMTQRBDAEF0E?
You can click on the BUY or RFQ button to purchase ASMTQRBDAEF0E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASMTQRBDAEF0E?
You can download the ASMTQRBDAEF0E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASMTQRBDAEF0E?
BROADCOM
