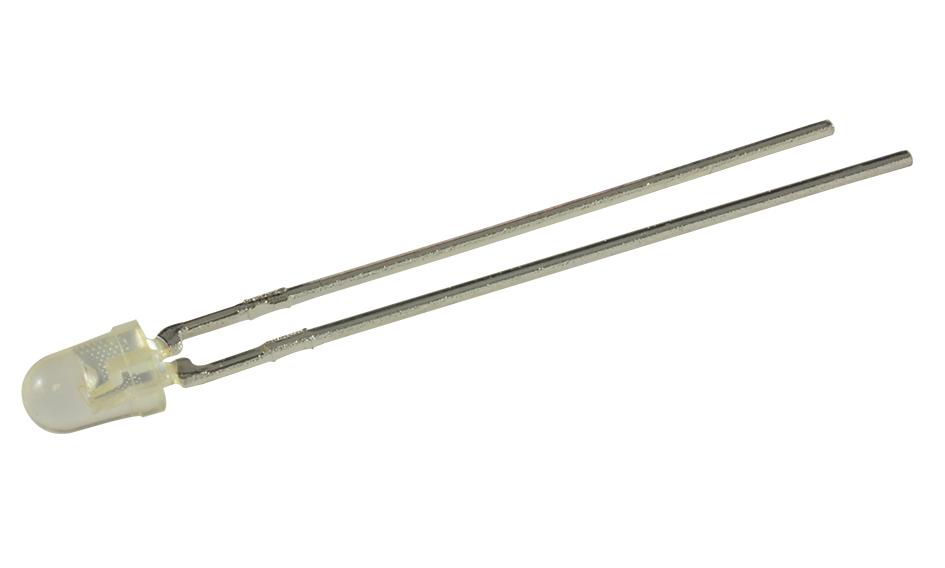

BROADCOM HLMP1440 Yellow LED Lamp
The HLMP-1440 is a 3mm ultra-bright yellow LED lamp featuring a non-diffused lens. Made from gallium arsenide phosphide on gallium phosphide, it offers superior brightness and color performance. Designed to be IC compatible with low current capability, it is reliable, rugged, and suitable for LED lighting, signaling, backlighting, and indicator applications. Its sturdy leads ensure durability in various environments. This yellow LED provides high luminous intensity with excellent efficiency, making it ideal for front panel backlighting, light pipes, and key indicators in industrial equipment. Its robust construction guarantees long-lasting performance in demanding conditions, with specifications supporting safe operation up to 110°C junction temperature and a maximum forward current of 25 mA.
BROADCOM HLMP1440 Yellow LED Lamp Specifications:
- Package Type: 3mm LED lamp with non-diffused lens
- Color: Yellow
- Brightness Min: 45.0 mcd
- Brightness Typical: 55.0 mcd
- Brightness Max: 70.0 mcd
- Peak Wavelength: 583 nm
- Dominant Wavelength: 585 nm
- Spectral Line Halfwidth: 36 nm
- Rise Time: 90 ns
- Fall Time: 90 ns
- Capacitance: 15 pF at 1 MHz
- Thermal Resistance (Junction to Cathode Lead): 210 °C/W
- Forward Voltage (at 20 mA): 2.6 V (typical)
- Reverse Voltage: 5 V
- Maximum Peak Forward Current: 60 mA
- Average Forward Current: 20 mA
- DC Forward Current: 20 mA
- Maximum Operating Temperature: -40°C to +100°C
- Storage Temperature: -40°C to +100°C
- Maximum Junction Temperature: 110°C
Buy the Avago HLMP-1440 Reliable Yellow LED for Industrial Applications
Purchase the Avago HLMP-1440 yellow LED online today and enhance your industrial lighting and signaling projects with high brightness and reliable performance. Its robust construction, IC compatibility, and energy-efficient design make it ideal for backlighting, indicator lights, and light pipes. With a compact 3mm size and non-diffused lens, it offers superior color performance and long-lasting durability. Experience quick delivery and secure your supply of this rugged, high-intensity LED for demanding industrial applications—order now and elevate your manufacturing or maintenance projects.
Buy Avago HLMP-1440 yellow LED now and experience unmatched brightness, durability, and energy efficiency in industrial signaling and lighting setups.
Frequently Asked Questions
Where can I buy BROADCOM HLMP1440?
You can click on the BUY or RFQ button to purchase HLMP1440 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP1440?
You can download the HLMP1440 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP1440?
BROADCOM
