BROADCOM HCPL0302000E IGBT Gate Drive Optocoupler
This is a 0.4A output current IGBT gate drive optocoupler suitable for use in isolated IGBT and power MOSFET gate drives, as well as applications in AC and brushless DC motor drives, industrial inverters, air conditioners, washing machines, induction heaters, and switching power supplies. It features a high-speed response with a maximum propagation delay of 0.7 microseconds over a temperature range, ultra-high common-mode rejection (CMR) of at least 10 kV/μs at VCM = 1000V, and a bootstrapable supply current of up to 3mA. The device supports a wide operating VCC voltage range of 10V to 30V over temperature, and holds safety approvals including UL certification for 3750 VRMS for one minute and CSA approval. Due to high market demand, lead times may be extended, and delivery dates and discounts are subject to fluctuation.
BROADCOM HCPL0302000E IGBT Gate Drive Optocoupler Specifications:
- Output Current: 0.4A maximum peak, 0.2A minimum peak
- Propagation Delay: 0.7 μs maximum response
- Common-Mode Rejection (CMR): ≥10 kV/μs at VCM=1000V
- Supply Voltage Range: 10V to 30V over temperature
- Temperature Range: -40°C to 100°C
- Isolation Voltage: ≥3750 Vrms (UL approval), ≥566 Vpeak (IEC/EN/DIN EN 60747-5-2)
- Safety Certifications: UL, CSA, IEC/EN/DIN EN 60747-5-2
- Package Options: DIP 8, SO-8
- Maximum Input Current: 20 mA (average), 1.0 A transient
- Maximum Storage Temperature: -55°C to 125°C

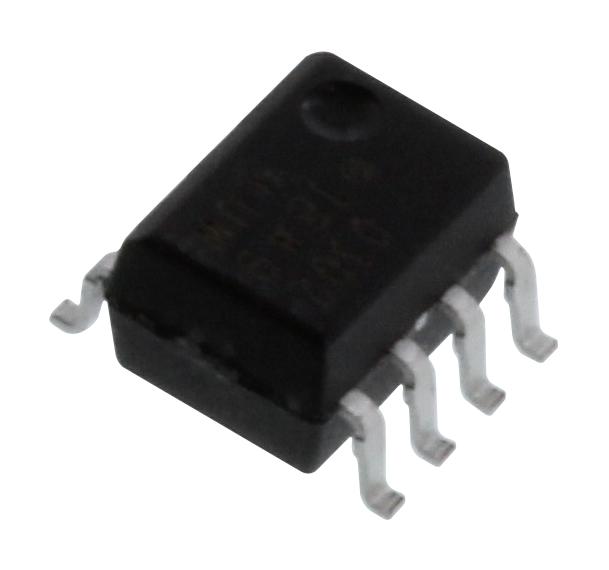

Buy the Buy Avago HCPL-0302 Optocoupler Part Number HCPL0302000E Online
Purchase the Avago HCPL-0302 optocoupler online today to ensure high-speed, reliable isolation for your power electronics. This device features a 0.4A maximum output current, propagation delay of only 0.7 microseconds, and excellent common-mode rejection of at least 10 kV/μs at VCM = 1000V. It supports a wide VCC range from 10V to 30V and operates over a temperature range of -40°C to 100°C. Certified by UL and CSA, this package is available in DIP 8 and SO-8 options, making it ideal for motor drives, inverters, and switching power supplies. Enjoy quick delivery and dependable performance for your industrial applications.
Buy Avago HCPL-0302 now and experience unmatched reliability and high-speed performance for efficient motor drive and inverter applications.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0302000E?
You can click on the BUY or RFQ button to purchase HCPL0302000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0302000E?
You can download the HCPL0302000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0302000E?
BROADCOM
