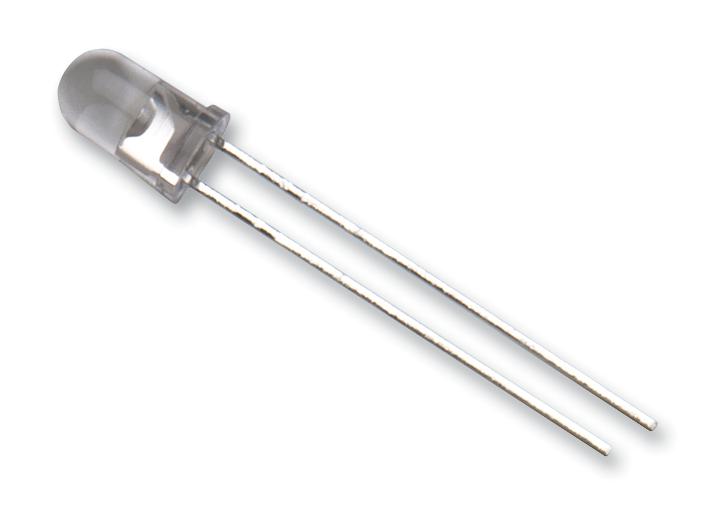

BROADCOM HLMPEH1AZ10DD High-brightness LED lamp
These ultra-bright, allnGaP LED lamps are designed for outdoor applications such as traffic signals, pedestrian controls, and signage, providing superior visibility in sunlight. Featuring a T-134 package with second-generation optics, they deliver well-defined spatial radiation patterns and high luminous output in colors like amber, red orange, and red. Made with advanced epoxy containing UV inhibitors, they offer excellent moisture and high-temperature resistance up to +130°C. Suitable for auto-insertion, these RoHS-compliant lamps ensure reliable long-term outdoor performance in demanding environments.
BROADCOM HLMPEH1AZ10DD High-brightness LED lamp Specifications:
- Package Type: T-134 with or without lead standoff
- Colors: Amber (590nm), Red Orange (615nm), Red (626nm)
- Viewing angles: 15°, 23°, 30°
- Maximum Junction Temperature: +130°C
- Epoxy resin: Optical grade, UV resistant
- Operating Temperature Range: -40°C to +100°C
- Lead Material: Tin-plated mild steel
- Power Dissipation: 120 mW
- Forward Voltage: 18–21V at 20mA
- Luminous Flux: 2100–2300 lumens at 20mA
- Peak Wavelength: Amber 594 nm, Red 634 nm, Red Orange 621 nm
- Thermal Resistance: 240°C/W junction to lead
- RoHS 6 compliant, Lead (Pb) free
- Recommended PCB Hole Diameter: 0.636–0.707 mm depending on lead size
- Max package dimensions: Length approx. 8.71 mm, Width approx. 5 mm
- Soldering Temperature: Max 260°C, Dwell Time: 5 sec
- Certified: UL Listed, RoHS compliant
- Product suitable for outdoor signage, traffic management, solar power signs
Buy the Avago HLMP-EH10DD – Reliable Outdoor Signal LED for Industrial Applications
Order Avago HLMP-EH10DD LED lamps online today and benefit from high luminous intensity, excellent moisture resistance, and stable operation up to +130°C. These allnGaP LEDs are perfect for outdoor traffic signals, signage, and warning lights, ensuring clear visibility even in direct sunlight. Manufactured with advanced epoxy technology, they deliver long-term reliability in demanding environments. Easy to install with auto-insertion compatibility, these RoHS-compliant lamps provide optimal performance for industrial signaling and outdoor advertising, making your projects more efficient and effective.
Buy Avago HLMP-EH10DD now and experience unmatched longevity and brightness in outdoor signal applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEH1AZ10DD?
You can click on the BUY or RFQ button to purchase HLMPEH1AZ10DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEH1AZ10DD?
You can download the HLMPEH1AZ10DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEH1AZ10DD?
BROADCOM
