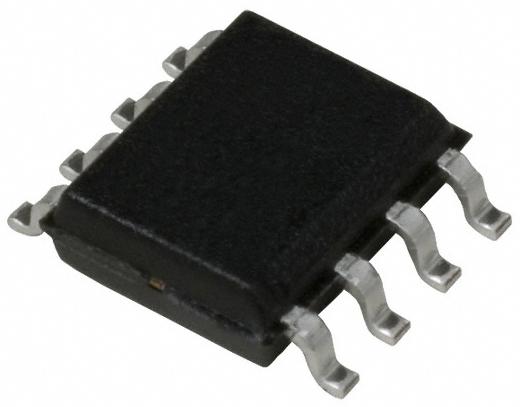

BROADCOM HCPL0601500E High-Speed Optocoupler
The HCPL-0601-500E is a high-speed, 8-pin surface-mount optocoupler combining an AlGaAsP LED with a high-gain detector. It features a strobable open-collector output, internal shield for common-mode transient immunity of 5000 V/μs, and a maximum isolation voltage of 567 V. Operating from -40°C to 85°C, it provides maximum AC/DC isolation for logic interfacing, line receivers, and signal buffering in noisy environments. Suitable for industrial, power, and communication systems, it ensures reliable performance in high-ground noise conditions.
BROADCOM HCPL0601500E High-Speed Optocoupler Specifications:
- Package: 8-Pin surface-mount gull-wing
- Operating Temperature: -40°C to 85°C
- Isolation Voltage: 567 V
- Common-mode Transient Immunity: 5000 V/μs
- Input Current: 5 mA (max)
- Output: Open-collector Schottky-clamped transistor
- LED Forward Voltage: typical 1.2-1.4 V at 10 mA
- Input Forward Current: 5 mA
- Solder Temperature: 260°C for 10 seconds
- Automation in digital and power systems, high ground noise environments, signal buffering, line receivers
- UL Recognized, CSA Approved, IEC/EN/DIN standards compliant
Buy the Avago HCPL-0601-500E – Reliable Optocoupler for Industrial Applications
Order the Avago HCPL-0601-500E online today to enhance your industrial automation, logic interface, or signal buffering systems. This high-speed, 8-pin surface-mount optocoupler boasts a common-mode transient immunity of 5000 V/μs, maximum isolation voltage of 567 V, and operates reliably between -40°C and 85°C. Its open-collector output is ideal for noisy environments, power management, and data communication applications. Easy to integrate with UL recognition, CSA approval, and compliance with IEC/EN/DIN standards, ensuring safe, robust, and efficient system operation. Purchase now for quick delivery and improved system performance.
Buy Avago HCPL-0601-500E now and experience unmatched reliability and high-speed digital isolation for industrial and power management systems.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0601500E?
You can click on the BUY or RFQ button to purchase HCPL0601500E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0601500E?
You can download the HCPL0601500E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0601500E?
BROADCOM
