BROADCOM HSMSA100J00J1 LED indicator
The HSMS-A100-J00J1 is a high-reliability PLCC-2 LED indicator crafted from Gallium Phosphide (GaP). It offers excellent performance in harsh environments, making it ideal for automotive interior lighting, signage, and general backlighting in industrial and home appliances. The compact surface-mount package supports IR reflow and wave soldering, providing flexibility in manufacturing. Boasting a wide 120° viewing angle and a flat top for easy integration with light pipes, it features built-in reflectors for increased brightness and high efficiency. Suitable for LED signaling, panel illumination, and automotive dashboard applications, ensuring durability and bright output.
BROADCOM HSMSA100J00J1 LED indicator Specifications:
- Package Type: PLCC-2 surface mount
- Material: Gallium Phosphide (GaP)
- Viewing Angle: 120°
- Emission Surface: Flat top
- Built-in reflector for enhanced brightness
- Compatible with IR reflow and wave soldering
- Operating Temperature: -55°C to +100°C
- Maximum Forward Voltage: 2.6V (max), typ. 2.2V at 20mA
- Forward Current: 30mA (max), recommended 10-20mA
- Reverse Voltage: 5V
- Reliability: Designed for harsh automotive and industrial environments
- Size Dimensions: Approx. 3.2 mm x 3.2 mm
- RoHS and Lead-Free compliant
- Reel Packaging: 8 mm carrier tape, 2000 pieces per reel

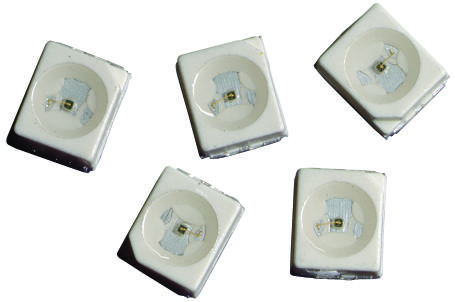

Buy the Buy Avago Technologies LED Indicator Part Number HSMS-A100-J00J1 Online
Experience superior performance with the Avago Technologies HSMS-A100-J00J1 LED indicator, designed for high reliability and bright output. Its PLCC-2 package and wide viewing angle make it versatile for automotive interior lighting, signs, and backlighting needs. Compatible with IR reflow and wave soldering, it ensures flexible manufacturing. The flat top surface simplifies connection with light pipes, while the built-in reflector increases brightness and efficiency. Perfect for dashboard, signage, and panel illumination, this LED offers durability in demanding environments.
Get Avago Technologies HSMS-A100-J00J1 today—engineered for reliability and bright illumination in automotive and signage applications.
Frequently Asked Questions
Where can I buy BROADCOM HSMSA100J00J1?
You can click on the BUY or RFQ button to purchase HSMSA100J00J1 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMSA100J00J1?
You can download the HSMSA100J00J1 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMSA100J00J1?
BROADCOM
