BROADCOM HSMH-C170 Datasheet & Stock

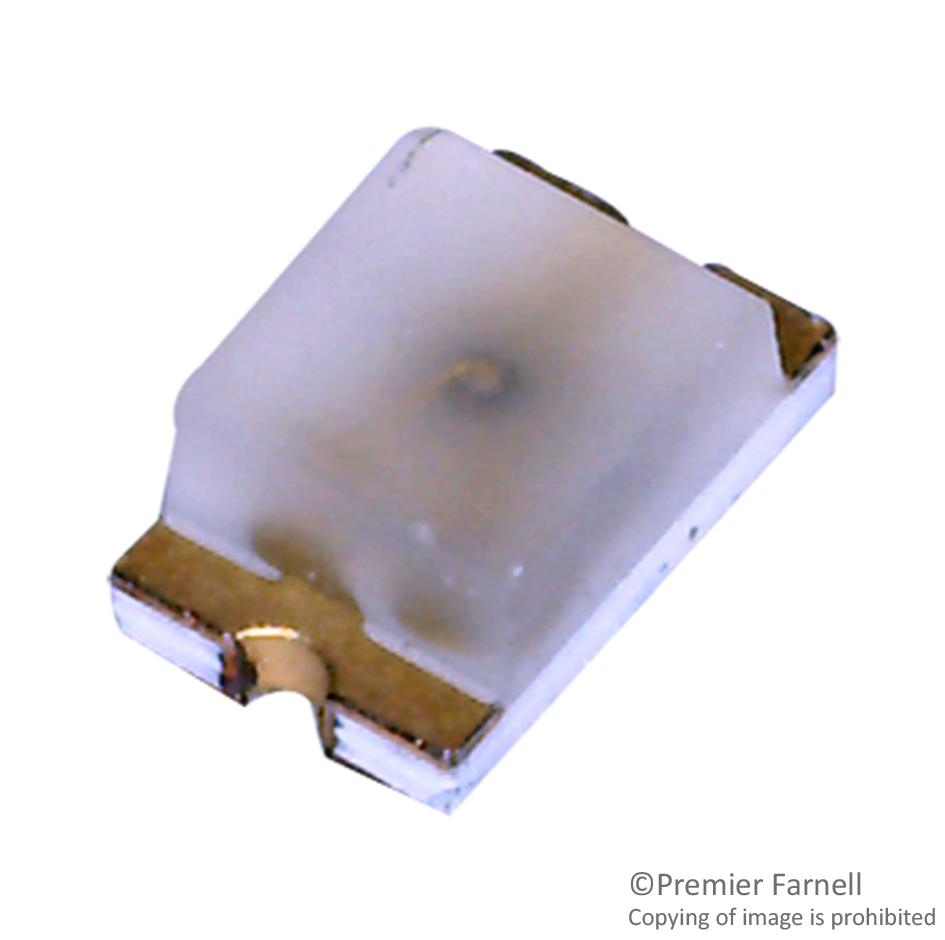

The HSMH-C170 from Avago is an untinted, diffused rectangular chip LED. The LED is small in size, wide viewing angle which makes a prime choice for backlighting applications and front panel illumination especially where space is of major concern.




Compatible with IR solder

Industry standard footprint ( 2mm x 1.25mm footprint with 0.8mm profile)

Right angle & reverse mount package available

Green colour LED

LED material is AlGaAs

Rectangular shape LED

Forward voltage is 1.8V

Forward current (If) is 20mA

Luminous intensity is 17mcd

Viewing angle of 170°





Applications


LED Lighting,

Portable Devices,

Industrial,

Consumer Electronics





Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
