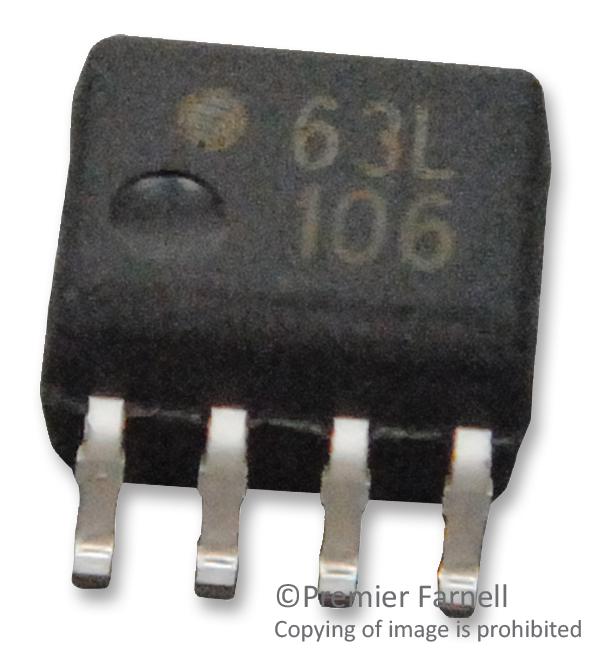

BROADCOM HCPL063L000E digital optocoupler
The HCPL-063L-000E is a high-speed digital optocoupler combining a GaAsP LED and a high-gain photodetector, offering high common mode transient immunity of 15 kV/μs at 3.3V. Designed for high-speed logic interfacing, input/output buffering, and line receiver applications, it features an open-collector Schottky-clamped transistor output and an enable input for strobing. With low power consumption, a typical data rate of 15 MBd, LVTTL/LVCMOS compatibility, and a low input current of 5mA, it is suitable for signal processing, computer peripherals, and power management in noisy environments.
BROADCOM HCPL063L000E digital optocoupler Specifications:
- Propagation Delay Time to High Level Output: 90 ns
- Propagation Delay Time to Low Level Output: 75 ns
- Pulse Width Distortion: 25 ns
- Output Rise Time: 45 ns
- Output Fall Time: 20 ns
- Common Mode Transient Immunity: 15 kV/μs
- Input Voltage (High Level): ≥ 2.0 V
- Input Voltage (Low Level): ≤ 0.8 V
- Input Forward Voltage: 1.5 V (at 10 mA)
- Input Reverse Voltage: 5 V
- Input Capacitance: 60 pF
- Output Voltage: 0.6 V (at 5 mA sinking)
- Output Current: 55-100 μA (high), 7-13 mA (low)
- Power Supply Voltage: 3.3 V to 5 V
- Operating Temperature Range: -40°C to +85°C
- Insulation Voltage (Input-Output): 3750 Vrms
- Isolation Resistance: > 10^12 Ω
- Package: 8-Pin DIP / SO-8 surface mount
Buy the Buy Avago Technologies HCPL063L000E Digital Optocoupler Part Number HCPL063L000E Online
Purchase the Avago HCPL063L000E optocoupler online today to experience high-speed digital isolation with excellent noise immunity. Perfect for logic interfacing, data buffering, and power management applications, it offers a data rate of 15 MBd, low input current of 5mA, and a common mode transient immunity of 15 kV/μs. Designed for industrial, computer, and power systems operating in harsh noisy environments, this device guarantees reliable performance, easy integration, and safety approvals, making it an essential component for modern electronics.
Order your Avago HCPL063L000E high-speed optocoupler today and ensure reliable signal isolation in noisy, high-speed electronic systems.
Frequently Asked Questions
Where can I buy BROADCOM HCPL063L000E?
You can click on the BUY or RFQ button to purchase HCPL063L000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL063L000E?
You can download the HCPL063L000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL063L000E?
BROADCOM
