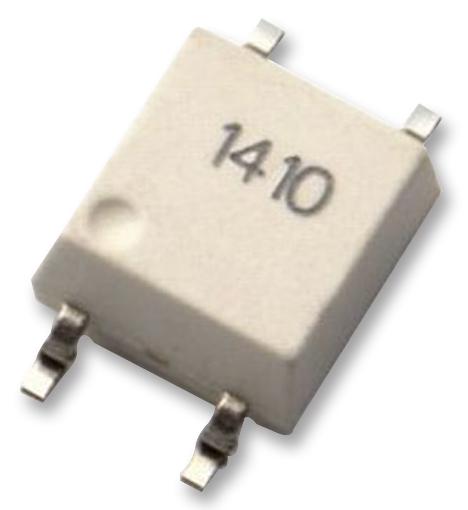

BROADCOM ASSR1410003E Signal Switch
The ASSR Series consists of low, high-speed optically isolated solid-state relays with Form A (SPST) configuration, rated for 60V and 0.6A, suitable for signal switching, industrial controls, telecommunication, and safety applications. Featuring RoHS compliance, these relays utilize an AlGaAs LED input coupled to photovoltaic detectors that switch high-voltage MOSFETs, providing fast response times (as low as 0.02ms off), high isolation (3750 Vrms), and low on-resistance (as low as 0.2Ω). Available in surface mount and DIP packages, they support both AC/DC and DC loads with a maximum operating temperature of 85°C.
BROADCOM ASSR1410003E Signal Switch Specifications:
- Rated voltage: 60V
- Maximum continuous load current: 0.6A
- Maximum switching power: Not specified
- Input LED forward voltage: 1.65 V at 5 mA
- Maximum input current: 20 mA
- Isolation voltage: 3750 Vrms (1 min)
- Leakage current: 0.5 nA at 60V
- On-resistance: 0.2Ω (DC-only), 0.7Ω (AC/DC)
- Switching time: 0.1ms turn on, 0.02ms turn off
- Operating temperature range: -40°C to +85°C
- Storage temperature: -55°C to +125°C
- Mechanical package options: 4-pin SO, 6-pin DIP, 8-pin DIP, Gull Wing surface mount
- Insulation and safety: UL 1577, CSA Certified
- Lead-free, RoHS compliant options available
Buy the Avago Series ASSR Signal Switch: ASSR1410003E
Purchase the Avago ASSR1410003E solid-state relay online today. This high-speed, infrared opto-isolated switch offers low on-resistance, high isolation (3750 Vrms), and fast switching times (as low as 0.02ms off). Its compact design in surface-mount and DIP formats makes it ideal for industrial controls, telecommunication systems, medical devices, and security applications. With RoHS compliance and a maximum operating temperature of 85°C, this relay ensures reliable performance in demanding environments. Order now for fast delivery and excellent quality assurance.
Get Avago ASSR1410003E today—built for precision, reliability, and fast switching for industrial and telecommunication signal control.
Frequently Asked Questions
Where can I buy BROADCOM ASSR1410003E?
You can click on the BUY or RFQ button to purchase ASSR1410003E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR1410003E?
You can download the ASSR1410003E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR1410003E?
BROADCOM
