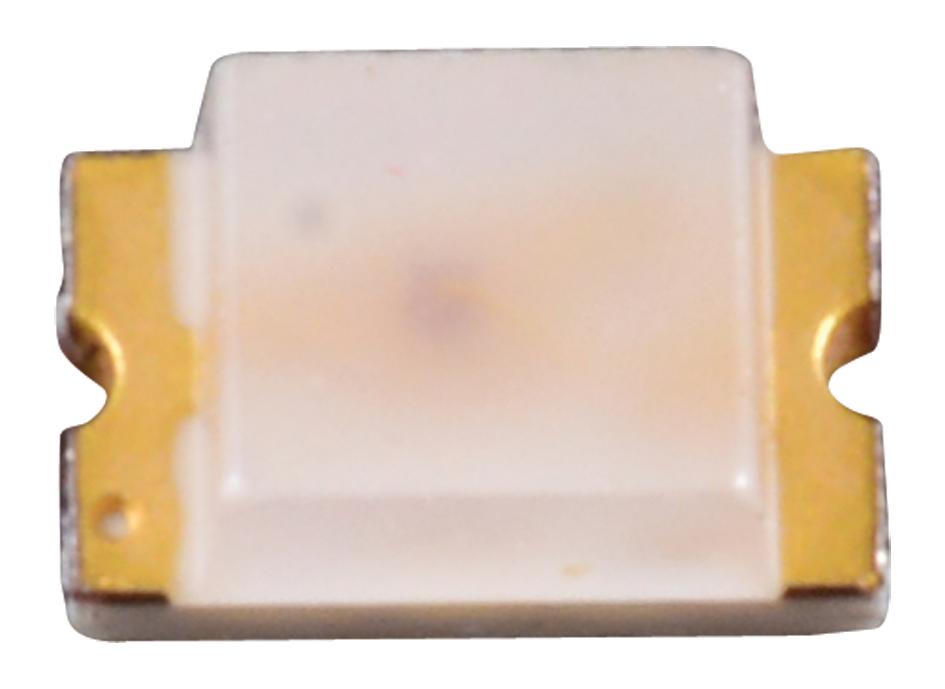

BROADCOM HSMYC170 Yellow LED
The HSMY-C170 is a surface-mount yellow chip LED designed in an industry-standard package for easy handling and integration. It features a 2.0 x 1.25mm footprint compatible with IR reflow soldering processes. The LED has diffused optics, a small size, and a wide viewing angle, making it ideal for backlighting and front panel illumination where space efficiency is important. Operating temperature ranges from -40°C to 85°C, offering reliable performance for various industrial or electronic applications.
BROADCOM HSMYC170 Yellow LED Specifications:
- Footprint: 2.0 x 1.25 mm
- Optics: Diffused
- Viewing Angle: Wide
- Operating Temperature Range: -40°C to +85°C
- Material: Epoxy encapsulation
- Soldering: Compatible with IR reflow processes
- Package: Industry standard surface mount
- Color: Yellow
- Luminous Intensity: 170 mcd (typical at 20mA)
- Peak Wavelength: 586 nm
- Forward Voltage: 2.2 V (max 2.6 V at 20mA)
- Reverse Voltage: 5 V
- Power Dissipation: 52 mW
- Storage Temperature: -40°C to +85°C
- Device dimensions: 2.0 x 1.25 mm footprint, 0.8 mm profile
- Reel Packaging: 3000 units per reel
Buy the Avago HSMY-C170 – Reliable Yellow LED for Industrial Applications
Purchase the Avago HSMY-C170 yellow surface-mount LED online for your next project. This compact LED features a 2.0 x 1.25mm footprint with diffused optics and wide viewing angle, making it perfect for backlighting, front panel illumination, and symbol lighting. Widely compatible with IR reflow soldering, it operates reliably from -40°C to 85°C. Get this high-quality, energy-efficient LED today and ensure space-efficient, durable lighting for industrial or electronic devices with fast online ordering.
Get Avago HSMY-C170 today—built for precision and long-lasting durability in compact LED lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HSMYC170?
You can click on the BUY or RFQ button to purchase HSMYC170 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMYC170?
You can download the HSMYC170 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMYC170?
BROADCOM
