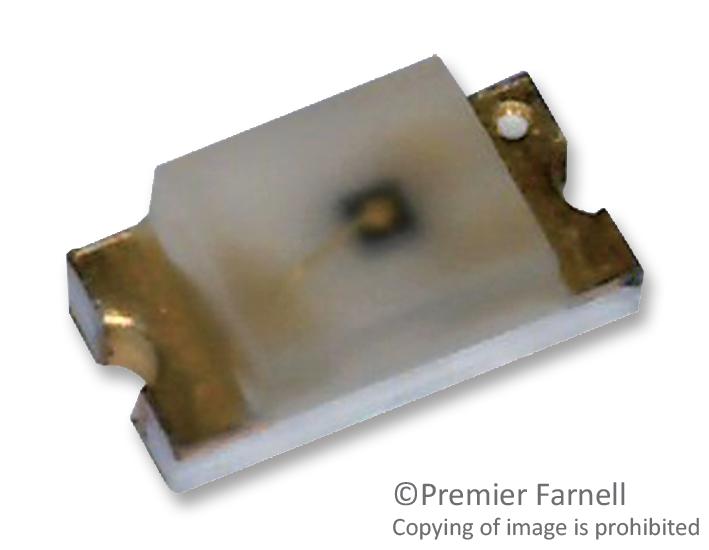

BROADCOM HSMQC191 High-Performance Chip LED
These high-performance chip LEDs utilize efficient InGaN material, delivering bright blue and green colors for LCD backlighting, signage, and front panel indicators. Featuring top, side, and reverse mount options with diffused optics, these compact LEDs are ideal for direct lighting and light piping applications. They are compatible with IR soldering and come in tape reel packaging for easy manufacturing. Their high brightness, small form factor, and broad viewing angles make them suitable for various display and backlighting solutions in industrial and consumer electronics.
BROADCOM HSMQC191 High-Performance Chip LED Specifications:
- Package Dimensions: 1.85 x 0.88 x 0.85 mm (HSMR-C191) with tolerances ±0.1 mm
- Color: Green or Blue, peak wavelengths 520 nm or 469 nm respectively
- Luminous Intensity: 45 mcd (green), 18 mcd (blue) at 20 mA
- Viewing Angle: 130° (green), 130° (blue)
- Forward Voltage: Typical 3.4V, Max 3.9V at 20 mA
- Reverse Voltage: 5V, Power Dissipation: 78 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Compatible with IR reflow soldering, tape reel packaging (3000 units per reel)
- Application: LCD backlighting, push button illumination, front panel indicators, signage
Buy the High Performance Chip LEDs – Reliable Indicator for Industrial Applications
Order Avago high-performance chip LEDs including the model HSMR-C191 directly from our online store. These compact, bright LEDs are ideal for LCD backlighting, microdisplays, and indicator solutions. Engineered for ease of assembly with tape and reel packaging, they ensure fast, reliable manufacturing. With broad viewing angles, high brightness, and compatibility with IR soldering, these LEDs support various industrial and signage applications. Purchase now to enhance your product’s visibility and durability with innovative illumination technology.
Buy Avago high-performance chip LEDs like the model HSMR-C191 now and experience unmatched brightness, reliability, and manufacturing efficiency for industrial lighting and display solutions.
Frequently Asked Questions
Where can I buy BROADCOM HSMQC191?
You can click on the BUY or RFQ button to purchase HSMQC191 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMQC191?
You can download the HSMQC191 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMQC191?
BROADCOM
