BROADCOM HCPL0930000E Digital Isolator
The HCPL-90xx and HCPL-09xx CMOS digital isolators are high-speed, RoHS-compliant devices that feature excellent transient immunity and industry-leading data rates up to 100 MBd. Designed for digital fieldbus, data transmission, and peripheral interfaces, they provide galvanic isolation of 2500V RMS, support logic level shifting, and are available in multiple packages including DIP and SOIC. Their fast propagation delay (around 15-18 ns), pulse width distortion under 3 ns, and wide temperature range of -40°C to +100°C make these isolators ideal for high-speed digital systems requiring reliable data transfer with low power consumption.
BROADCOM HCPL0930000E Digital Isolator Specifications:
- Supply Voltage: +3.3V or +5V TTL/CMOS compatible
- Data Rate: Up to 100 MBd
- Propagation Delay: 15-18 ns
- Pulse Width Distortion: Less than 3 ns
- Output Voltage: Voh 0-1 V, Vol 0-0.1 V
- Common Mode Rejection: 15 kV/μs minimum
- Isolation Voltage: 2500V RMS
- Temperature Range: -40°C to +100°C
- Packages: 8-pin DIP, 8-pin SOIC, 16-pin SOIC Wide and Narrow Body
- Power Dissipation: 150-240 mW depending on package
- Lead Solder Temperature: 260°C (10s)
- ESD Handling: 2 kV Human Body Model
- Input Voltage: -0.5V to +7V
- Output Drive Current: Up to 10 mA

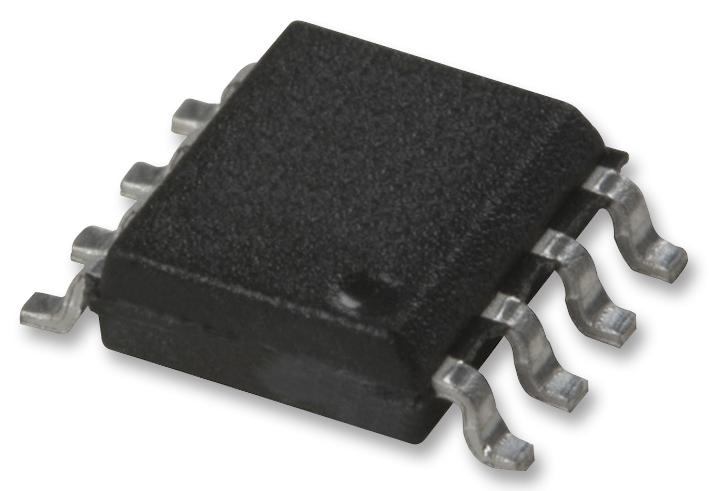

Buy the Buy Avago Technologies HCPL-90xx Series Digital Isolator Part Number HCPL-0930000E Online
Secure your high-speed digital data transmission with the Avago HCPL-0930000E digital isolator. This RoHS-compliant, 2500V RMS isolation device offers 100 MBd data rate, low propagation delay of 15-18 ns, and minimal pulse width distortion under 3 ns. Perfect for digital fieldbus, data multiplexing, and peripheral interfaces, it supports logic level shifting and operates reliably between -40°C and +100°C. Available in multiple packages including DIP and SOIC, order online now for fast delivery and dependable performance in your high-speed digital applications.
Order your Avago Technologies HCPL-0930000E high-speed digital isolator today and ensure reliable, high-performance data transfer with galvanic isolation for your digital system needs.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0930000E?
You can click on the BUY or RFQ button to purchase HCPL0930000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0930000E?
You can download the HCPL0930000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0930000E?
BROADCOM
