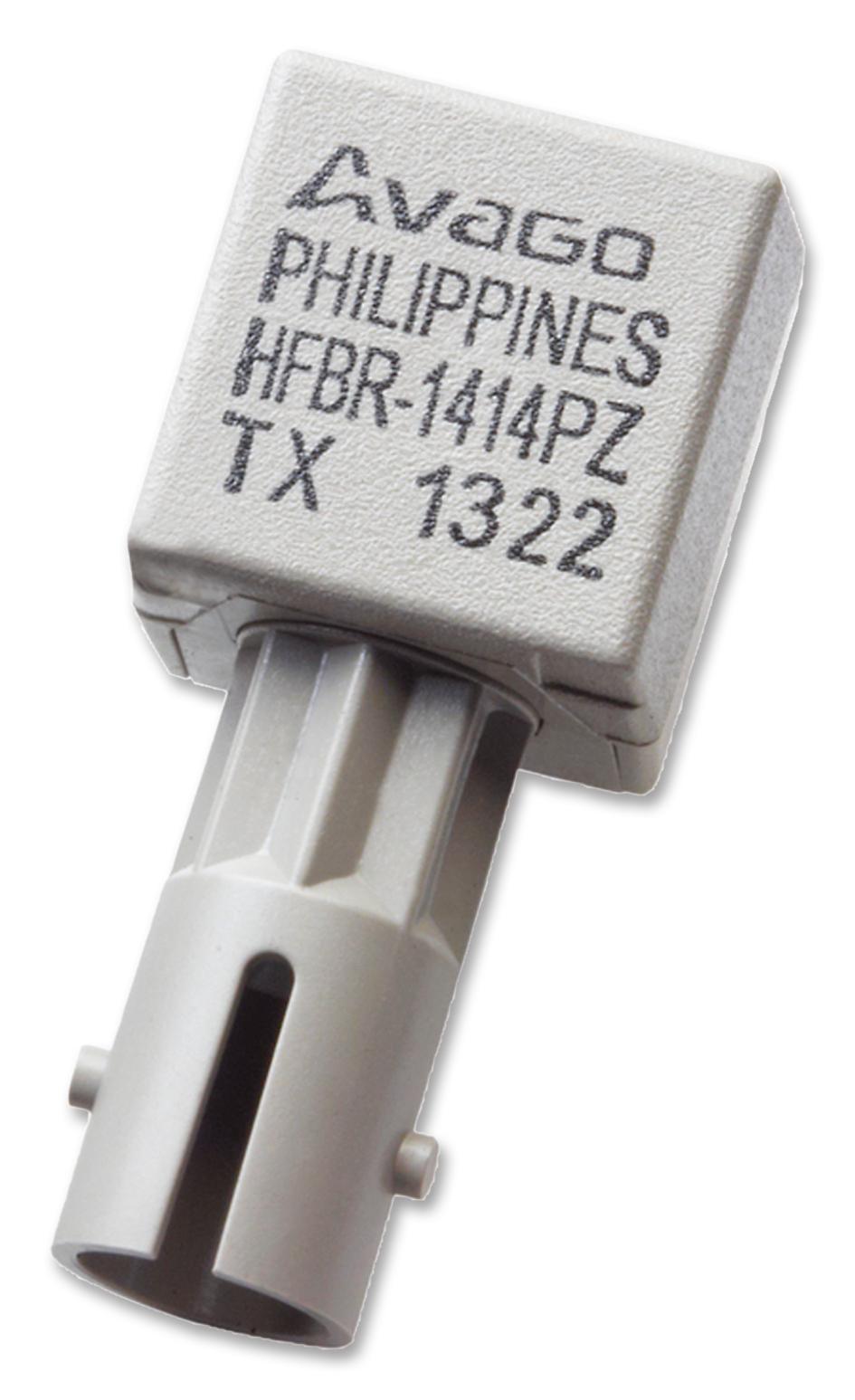

BROADCOM HFBR1414PZ Fiber Optic Transmitter
The HFBR-1414PZ is a cost-effective 850 nm high-speed fiber optic transmitter designed for industrial and communication applications. It features an AlGaAs LED capable of launching high optical power with low current consumption, ensuring reliable data transmission over several kilometers. Compatible with standard connectors like ST, SMA, SC, and FC, it supports data rates up to 160 MBd with an optimized coupling efficiency for various fiber sizes (50/125, 62.5/125, 100/140, and 200 um). Suitable for Ethernet, industrial control, and high-speed data links, it offers improved ESD protection with a Zener diode parallel to the LED for enhanced durability.
BROADCOM HFBR1414PZ Fiber Optic Transmitter Specifications:
- Wavelength: 850 nm
- Optical Power Launch: -12 dBm typical into 62.5/125 um fiber at 60 mA
- Supported Fiber Sizes: 50/125 um, 62.5/125 um, 100/140 um, 200 um PCS
- Data Rate: Up to 160 MBd
- Operating Temperature: -40°C to +85°C
- Forward Voltage: 1.84 V at 100 mA
- Peak Emission Wavelength: 820 nm
- Electrical Interface: TTL compatible input
- ESD Protection: Improved option with Zener diode
- Package: Dual-inline plastic, pick and place compatible
- Connector Compatibility: ST, SMA, SC, FC ports
- Power Supply: 5 VDC
- Peak Optical Output Power: -12 dBm into large fibers
- Response Time: Rise/Fall time about 40-65 ns
- Mechanical Dimensions: As per MIL-STD-83522/13 for optical port arrangements
Buy the Broadcom HFBR-1414PZ – Reliable Fiber Optic Transmitter for Industrial Applications
Purchase the Broadcom HFBR-1414PZ fiber optic transmitter online today to ensure your industrial or communication system benefits from high-speed data transmission over several kilometers. Designed for robustness and compatibility with standard connectors such as ST, SMA, SC, and FC, this high-performance device supports data rates up to 160 MBd at 850 nm wavelength. Its efficient coupling, low power consumption, and enhanced ESD protection make it a dependable choice for Ethernet, industrial control, video links, and more. Secure your supply now and enhance your project’s reliability and performance.
Order your Broadcom HFBR-1414PZ fiber optic transmitter today and enjoy high-speed, reliable data transmission suitable for industrial and communication projects.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1414PZ?
You can click on the BUY or RFQ button to purchase HFBR1414PZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1414PZ?
You can download the HFBR1414PZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1414PZ?
BROADCOM
