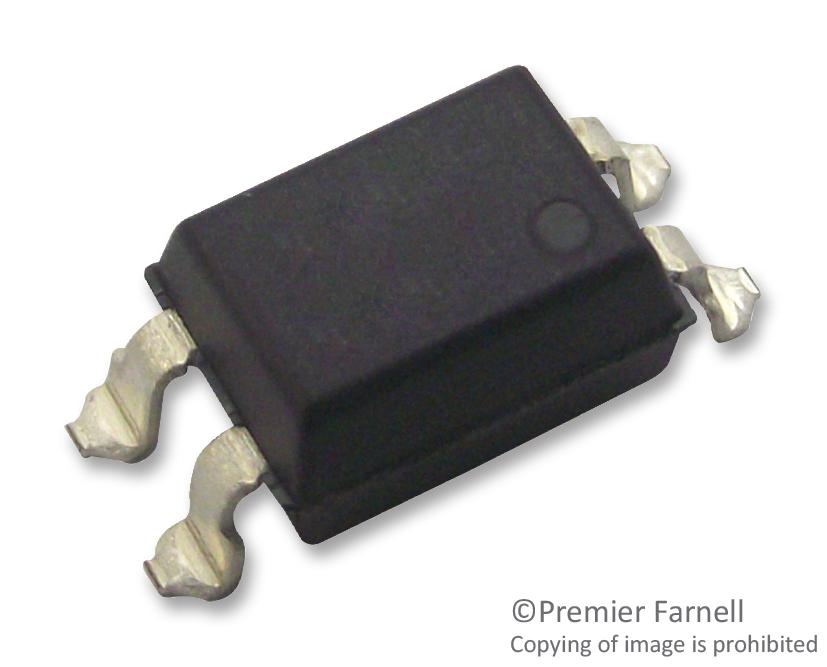

BROADCOM HCPL81750AE Phototransistor Optocoupler
This high-density mounting phototransistor optocoupler in a 300mil DIP-4 package features an internal LED and phototransistor for optical isolation. With a high input-output isolation voltage of 5000 Vrms, it ensures safety and durability in various applications. The device offers a response time of 4 microseconds at Vce = 2V, Ic = 2mA, and an RL of 100 ohms, making it suitable for signal transmission and I/O interfaces. It is UL and CSA approved, supporting reliable integration into industrial control and power supply feedback circuits. Typical forward voltage is 1.4V at 20mA.
BROADCOM HCPL81750AE Phototransistor Optocoupler Specifications:
- Package Type: DIP-4, 300mil Dual-in-Line
- Isolation Voltage: 5000 Vrms (1 min)
- Response Time: 4 μs (typical)
- Forward Voltage: 1.4 V at 20 mA
- Collector-Emitter Voltage: 70 V
- Collector Current: 50 mA
- Input Reverse Voltage: 6 V
- Power Dissipation: Collector 150 mW, Total 200 mW
- Operating Temperature Range: -30°C to +100°C
- Storage Temperature Range: -55°C to +125°C
- Approval: UL Recognized, CSA Approved
- Lead-free, RoHS compliant Option available
Buy the Avago HCPL-81750AE – Reliable Phototransistor for Industrial Applications
Purchase the Avago HCPL-81750AE phototransistor optocoupler online now for robust electrical isolation in industrial controls, computers, and feedback circuits. This UL and CSA approved device features a 5000 Vrms isolation voltage, quick 4 μs response time, and a compact DIP-4 package. Ideal for signal transmission across different potentials and impedances, it's designed for reliable operation in demanding environments. Buy online today and enhance your systems with proven, high-quality optocoupling technology, ensuring safety, durability, and efficient performance.
Order your Avago HCPL-81750AE high-density DIP-4 optocoupler today and ensure secure signal isolation with fast response times for industrial and power supply projects.
Frequently Asked Questions
Where can I buy BROADCOM HCPL81750AE?
You can click on the BUY or RFQ button to purchase HCPL81750AE from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL81750AE?
You can download the HCPL81750AE datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL81750AE?
BROADCOM
