BROADCOM HCPL2231000E Logic Gate Optocoupler
The HCPL-2231-000E is a high common-mode rejection, wide VCC logic gate optocoupler with an AlGaAs LED. It features totem pole output stages and built-in Schmitt triggers, delivering logic-compatible waveforms without additional waveshaping. Offering a minimum of 10 kV/µs common-mode transient immunity at VCM = 1000V, it operates across a wide VCC range from 4.5V to 20V. With a propagation delay of 300ns, low input current of 1.6–1.8mA, and hysteresis, this device suits computer peripherals, signal processing, and power control systems.
BROADCOM HCPL2231000E Logic Gate Optocoupler Specifications:
- Common Mode Rejection: 10 kV/µs at VCM = 1000V
- VCC Operating Range: 4.5V to 20V
- Propagation Delay: 300 ns guaranteed over full temperature range
- Input Current: 1.6–1.8 mA
- Output: totem pole with Schmitt trigger stages
- Peak Signal Rate: 5 Mbaud
- Isolation Voltage: 3750 V rms for 1 minute per UL1577
- Temperature Range: -40°C to 85°C
- Hysteresis: yes
- Applications: computer peripherals, signal isolation, power management

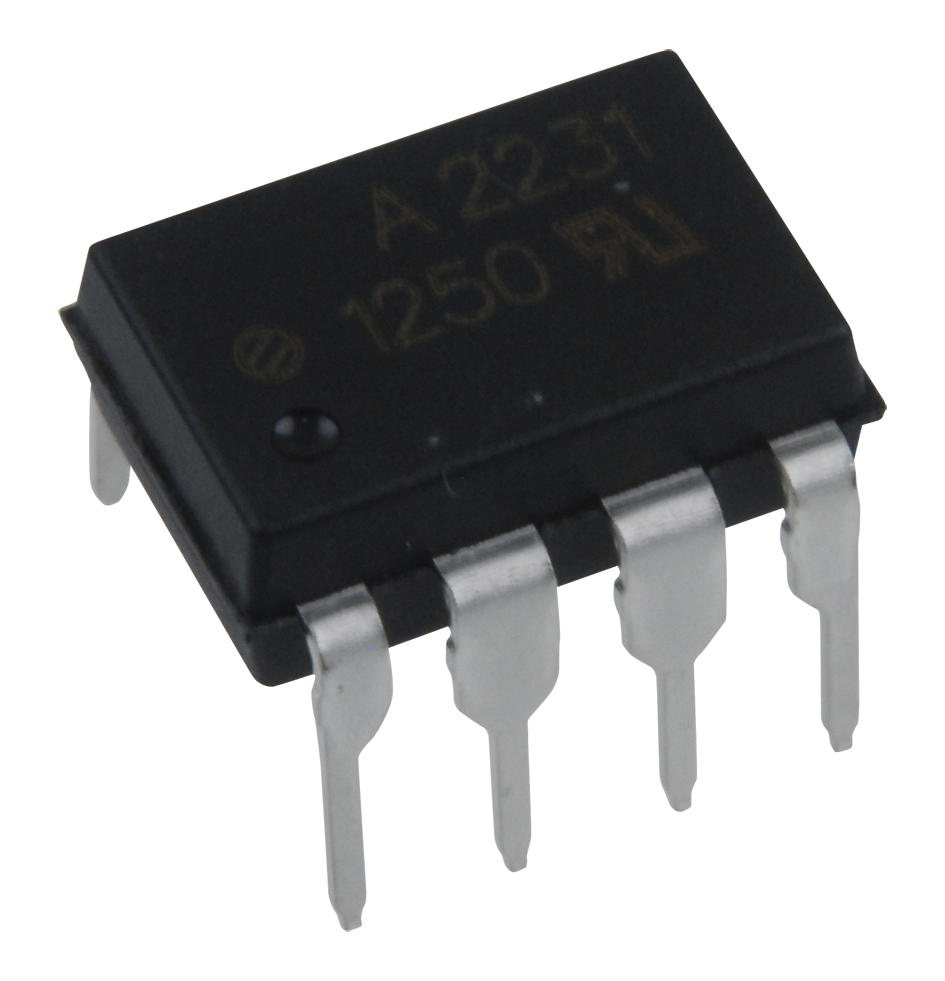

Buy the Avago HCPL-2231-000E – Reliable Logic Gate Optocoupler for Industrial Applications
Purchase your Avago HCPL-2231-000E optocoupler online today to ensure reliable signal isolation and high common-mode transient immunity for your industrial projects. Designed with an AlGaAs LED and built-in Schmitt triggers, this device guarantees a propagation delay of 300ns across wide temperature ranges, supporting power systems, microprocessor interfaces, and high-speed data applications. With UL and CSA safety approvals, ordering online provides quick delivery, competitive pricing, and technical support for integrating this high-performance optocoupler seamlessly into your automation and control solutions.
Order your Avago HCPL-2231-000E wide VCC logic gate optocoupler today and enhance your industrial control systems with dependable, high-performance isolation.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2231000E?
You can click on the BUY or RFQ button to purchase HCPL2231000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2231000E?
You can download the HCPL2231000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2231000E?
BROADCOM
