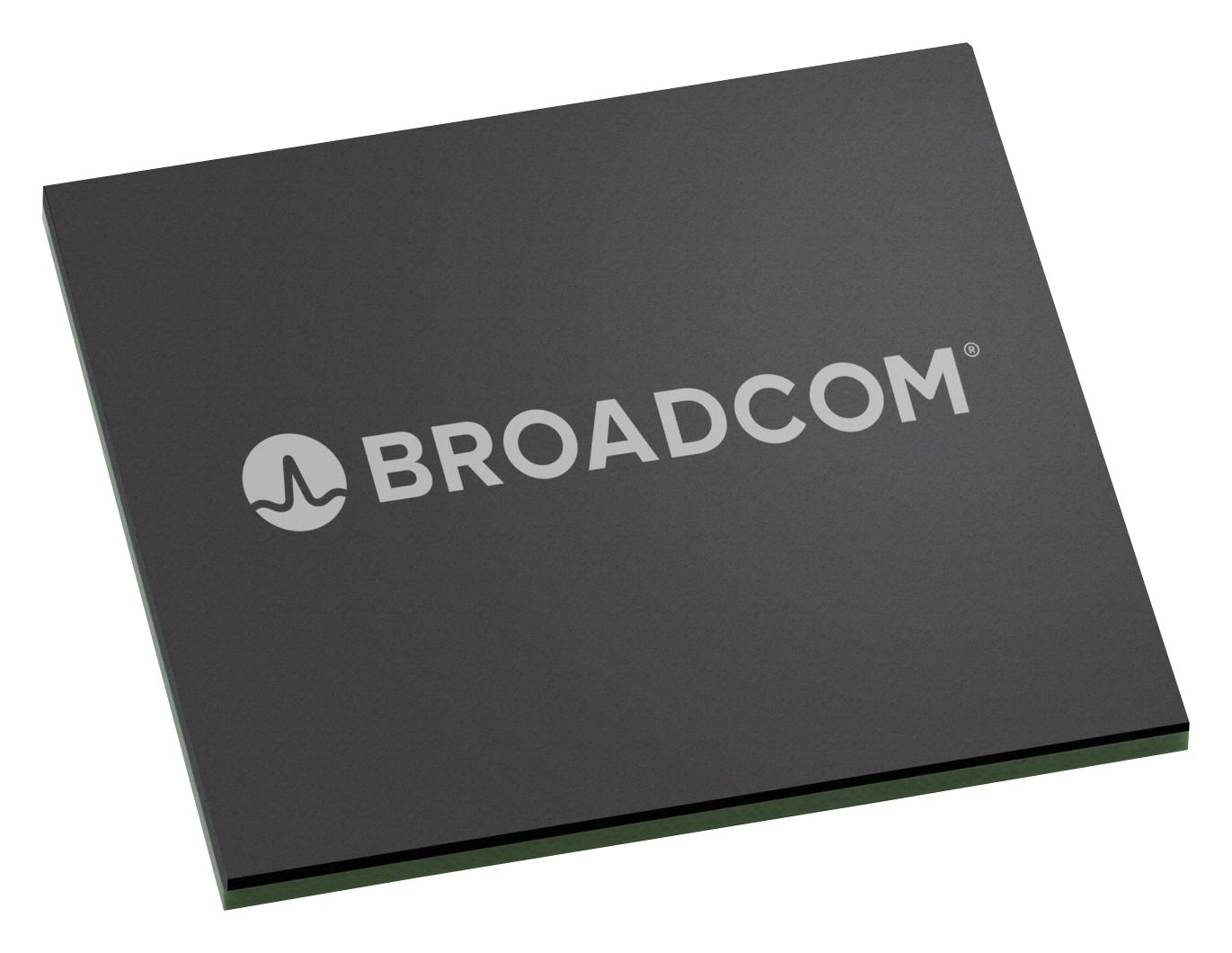

BROADCOM BCM53106SKFBG Ethernet Switch
The BCM53106S is a highly integrated, ultra low-power Ethernet switch with four 10/100BASE-TX ports, two gigabit MACs, and dual RGMII interfaces for PHY-less connections. It features advanced QoS, VLAN, double-tagging, jumbo frame support, port trunking, IGMP/MLD snooping, IEEE 802.1X security, DoS attack prevention, multiple spanning trees, and comprehensive management with embedded MIB counters and high-performance memory. Designed for home, SMB, and next-generation router applications, it supports extensive traffic management, time-aware scheduling, energy-efficient modes, and flexible port configurations, all in a compact 212-pin FBGA package.
BROADCOM BCM53106SKFBG Ethernet Switch Specifications:
- Ports: 4 x 10/100BASE-TX, 2 x 10/100/1000RGMII ports
- Packet Buffer: 128 KB
- Jumbo Frame Support: up to 9720 bytes
- Packet Counters: 70+ internal MIB counters
- VLAN: IEEE 802.1Q with 4K entries
- QoS: 8 queues per port, 6 queues supported with priority mapping
- Trunking: MAC-based, up to 2 groups
- Security: IEEE 802.1X, DoS prevention, IGMP/MLD snooping
- Timing: IEEE 802.3x flow control, IEEE 802.1AS BroadSync HD
- Power: 1.0V core, 3.3V I/O, energy-efficient modes
- Package: 212-pin FBGA
- Temperature: Industrial and Commercial options
- Management: Embedded microcontroller, MIB, serial and SPI interfaces
- Additional features: port-based rate control, spanning tree, cable checker, time-stamping
- Dimensions/Package: Standard 212-pin FBGA, compact size for integration
Buy the Broadcom Series BCM53106S Ethernet Switch: BCM53106SKFBG
Order the Broadcom BCM53106S Ethernet Switch online today and leverage its advanced QoS, VLAN, jumbo frame support, and high-performance memory. Designed for home, SMB, and next-generation routers, this switch offers reliable, secure, and efficient network connectivity. Its compact FBGA package with multiple features ensures seamless integration into your network infrastructure, providing extensive traffic control, security, and management capabilities. Purchase now to enhance your networking hardware with industry-leading technology and superior durability.
Get Broadcom BCM53106S Ethernet Switch today—built for precision, low power, and advanced traffic management in your networking solutions.
Frequently Asked Questions
Where can I buy BROADCOM BCM53106SKFBG?
You can click on the BUY or RFQ button to purchase BCM53106SKFBG from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part BCM53106SKFBG?
You can download the BCM53106SKFBG datasheet or visit the BROADCOM website for support.
Who is the manufacturer of BCM53106SKFBG?
BROADCOM
