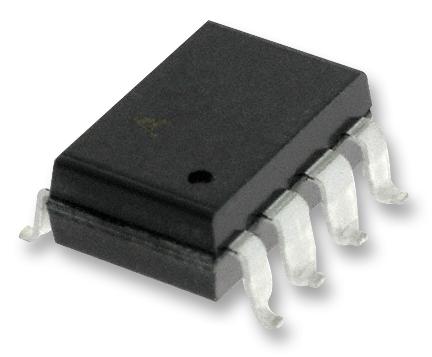

BROADCOM HCPL2531300E High Speed Optocoupler
These high-speed dual channel optocouplers provide electrical isolation between input and output with integrated photo-detectors and light emitting diodes. They're available in DIP and SO-8 packages, featuring high common mode transient immunity up to 15 kV/μs and a bandwidth of 3 MHz. Designed for TTL, CMOS, and analog applications, these optocouplers are UL recognized, RoHS compliant, and suitable for ground isolation and polarity sensing. They ensure safety with high insulation voltages and are ideal for high-speed, isolated digital and analog signal transmission in industrial systems.
BROADCOM HCPL2531300E High Speed Optocoupler Specifications:
- Bandwidth: 3 MHz
- Common mode transient immunity: 15 kV/μs minimum
- Isolation Voltage: 3750 Vrms (UL recognized), 560-630 Vpeak insulation voltage
- Input forward current: 25 mA (average), 50 mA (peak)
- Output current: 8 mA (average), 16 mA (peak)
- Input-output isolation resistance: > 10^12 Ω
- Capacitance: Input-Output ~0.03 pF
- Solder temperature: 260°C (through-hole)
- Operating temperature: -55°C to +100°C
- Package options: 8 pin DIP, SO-8, Gull Wing surface-mount
- UL and CSA approved, RoHS compliant options available
- Supply voltage (Pin 8-5): 0-30 V
- Propagation delay: 0.2-1.0 μs (typical)
- Open collector outputs, suitable for high-speed digital isolation.
Buy the Avago Series High Speed Optocouplers: HCPL2531300E
Order the Avago HCPL2531300E high-speed dual channel optocouplers online today to ensure reliable electrical isolation in your digital and analog systems. These optocouplers provide high common mode transient immunity up to 15 kV/μs, a bandwidth of 3 MHz, and are UL recognized and RoHS compliant. Available in DIP and SO-8 packages, they are perfect for ground isolation, polarity sensing, and high-speed applications, offering optimal performance and safety. Don't miss your chance to enhance your circuit reliability with these industry-grade optocouplers—shop now for fast delivery and competitive pricing.
Buy Avago HCPL2531300E high-speed optocouplers now and experience unmatched signal isolation and performance for industrial and digital applications.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2531300E?
You can click on the BUY or RFQ button to purchase HCPL2531300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2531300E?
You can download the HCPL2531300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2531300E?
BROADCOM
