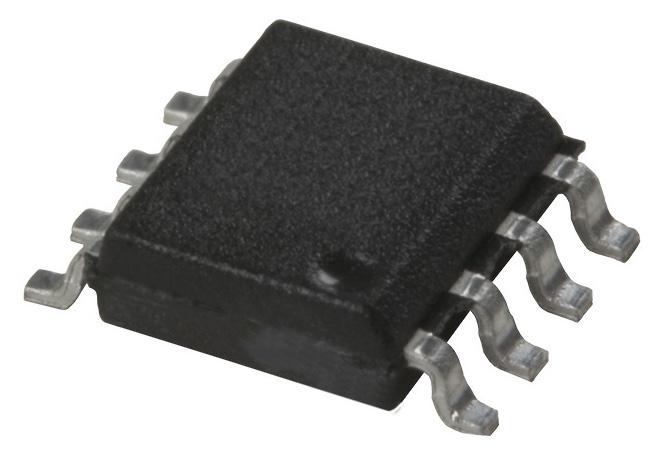

BROADCOM HCPL2300000E High-Speed Optocoupler
The HCPL-2300/HCPL-0300 optocoupler combines an 820 nm AlGaAs emitter with an integrated high-gain detector, offering high-speed data communication and logic signal isolation. Designed for ground loop elimination, RS-232-C interfaces, and long-distance line reception, it features low input current, fast rise and fall times, and excellent common mode rejection due to internal shielding. Its open-collector Schottky-clamped output is TTL, LSTTL, and CMOS compatible, ensuring reliable performance over -40°C to 85°C and meeting safety standards such as UL recognition and IEC/EN certifications.
BROADCOM HCPL2300000E High-Speed Optocoupler Specifications:
- Wavelength: 820 nm
- Input Current: 0.5 mA guaranteed (threshold)
- Input Voltage: V_F: 1.3 V at 10 mA typical
- Output Voltage: V_O: low voltage drop, V_C: up to 18 V
- Output Current: Maximum 25 mA
- Propagation Delay Times: tr ≈ 95-160 ns; tO ≈ 110-200 ns
- Rise Time: 40 ns; Fall Time: 20 ns
- Common Mode Transient Immunity: 100-400 V/μs
- Isolation Voltage: 3750 Vrms (UL), 630 V (IEC/EN)
- Operating Temperature Range: -40°C to 85°C
- Insulation Resistance: ≥ 10^12 Ω
- Package: 8-pin DIP or SO-8 surface mount
- RoHS Compliant: Yes
- Safety: UL Recognized, CSA Approved
Buy the Buy Avago HCPL-2300 Part Number HCPL2300000E Online
Order the Avago HCPL-2300 optocoupler online today to ensure your circuit benefits from high-speed data transfer, low input power, and excellent electromagnetic interference immunity. Designed for reliable RS-232 interfaces and ground loop isolation, this device features a fast response time, high common mode rejection, and a robust safety certification, making it ideal for industrial, automation, and communication systems. Secure your long-distance communication setup with this superior optocoupler for enhanced performance and durability.
Get Avago HCPL-2300 today—built for high-speed data isolation and reliable long-distance communication performance.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2300000E?
You can click on the BUY or RFQ button to purchase HCPL2300000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2300000E?
You can download the HCPL2300000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2300000E?
BROADCOM
