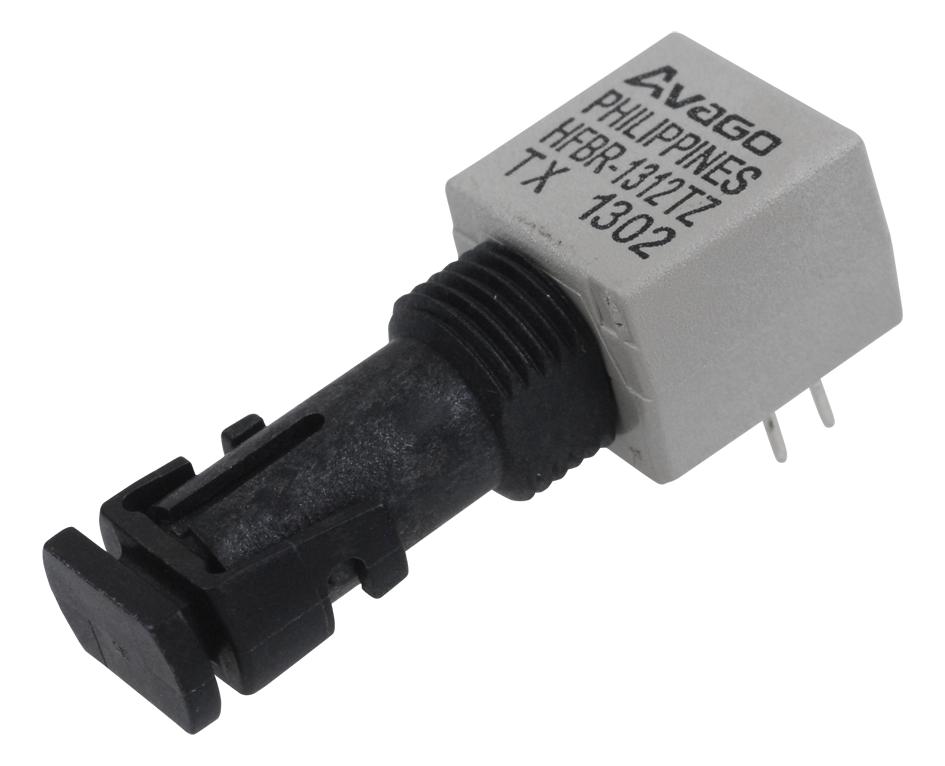

BROADCOM HFBR1312TZ 1300nm Fiber Optic Transmitter
The HFBR-1312TZ is a fiber optic transmitter designed for high-quality 1300nm optical links, suitable for a wide range of data communication applications, from low-speed distance extenders to SONET OC-3 signal rates. It is compatible with both 50/125µm and 62.5/125µm fiber sizes, offering flexibility in fiber selection. Operating at 1300nm wavelength, it provides lower dispersion and attenuation, enabling longer transmission distances—typically up to 2 km at 125 Mbaud and 5 km at 32 Mbaud. The transmitter features a dual-in-line package with panel-mountable ST and SC connectors, and is auto-insertable and wave-solderable. It is compatible with the HFBR-0400Z series receiver and can also be used with single-mode 9/125µm fiber. Applications include communications, networking, fiber optics, and industrial environments.
BROADCOM HFBR1312TZ 1300nm Fiber Optic Transmitter Specifications:
- Wavelength: 1300 nm
- Fiber Compatibility: 50/125 µm, 62.5/125 µm, single-mode 9/125 µm
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 85°C
- Maximum Forward Input Current: 100 mA
- Dimensions: 12.6 mm x 5.05 mm (package size), package made of heat-resistant plastic
- Form Factor: Dual-in-line, panel-mountable ST and SC ports
- Soldering Temperature: 260°C, cycle time 10 sec
- Optical Power: Peak Power up to 175 dBm at 75 mA, typical optical power at 75 mA
- Power Consumption: Approximately 14-17 V forward voltage at 75 mA
- Connector Type: ST, SC, and optional threaded panel mount
- Includes RoHS compliance and wave-solderable features
Buy the Buy Avago HFBR-1312TZ Part Number HFBR1312TZ Online
Purchase the Avago HFBR-1312TZ fiber optic transmitter online today for efficient, long-distance data communication. Designed for applications up to 5 km, it features compatibility with multiple fiber types, including multimode and single-mode fibers. Its robust dual-in-line package with panel-mountable connectors ensures easy installation in networking, telecom, and industrial systems. Featuring low power consumption and RoHS compliance, the HFBR-1312TZ offers reliable performance, long-term durability, and seamless integration for high-speed data links and distance extension projects—order now for fast delivery and technical support.
Get Avago HFBR-1312TZ today—engineered for high-performance long-distance fiber optic links with low attenuation and reliable connection capabilities.
