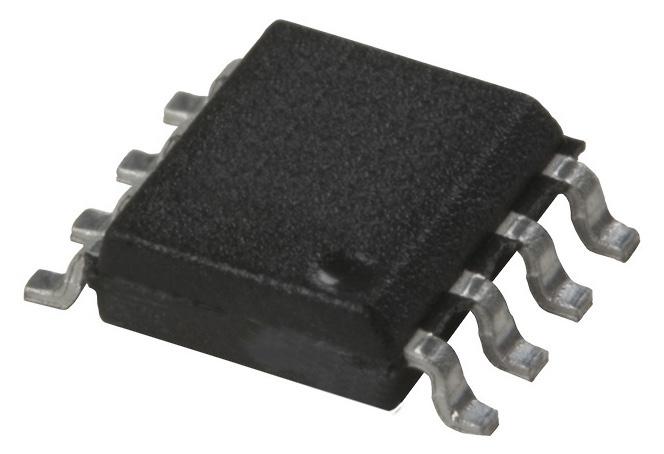

BROADCOM HCPL2300300E high-speed optocoupler
The HCPL-2300-300E optocoupler by Avago combines an 820 nm AlGaAs LED with a high-gain photodetector, delivering high-speed data isolation and ground loop elimination. Its diffused junction allows fast rise and fall times at low drive currents, enabling reliable RS-232C interface use. With an open-collector Schottky output and internal shield for superior common mode noise rejection, it operates efficiently over long distances. Designed for robustness, it supports TTL, LSTTL, and CMOS compatibility, with static and dynamic performance guaranteed from -40°C to 85°C, making it ideal for digital isolation in industrial communication systems.
BROADCOM HCPL2300300E high-speed optocoupler Specifications:
- Maximum Storage Temperature: 125°C
- Operating Temperature Range: -40°C to 85°C
- Input Forward Voltage: 1.2 to 1.4 V at 5 mA
- Input Reverse Voltage: 3.0 V
- Input Current: 5 mA typical, up to 10 mA maximum
- Output Voltage: Up to 18 V at collector current of 25 mA
- Output Voltage Drop: 0.5 V maximum at 25 mA
- Collector Power Dissipation: 40 mW
- Output Power Dissipation: 600 mW maximum
- Propagation Delay: 95 ns (tr), 110 ns (toff) at 5 mA input
- Common Mode Transient Immunity: 100 V/μs minimum
- Isolation Voltage: 3750 Vrms for 1 minute
- Insulation Voltage: 630 V (Option 060 only)
- Package: 8-pin surface-mount, gull wing or DIP options
- RoHS Compliant: Yes, fully compliant
- Certifications: UL Recognized, CSA approved, IEC/EN/DIN EN60747-5-5 protective standards
- Supply Voltage Vcc: 4.75V to 5.25V
Buy the Avago HCPL2300300E – Reliable Data Isolation for Industrial Applications
Purchase the Avago HCPL2300300E optocoupler online now and benefit from superior signal isolation, ground loop elimination, and fast data transfer. Its high-performance design provides reliable operation over wide temperature ranges from -40°C to 85°C, supporting industrial communication, RS-232 interfaces, and microprocessor applications. With UL recognition, CSA approval, and RoHS compliance, this device guarantees safety and durability. Whether for long-distance data links or noise-sensitive environments, buy online today and upgrade your circuit’s reliability and performance effortlessly.
Order your Avago Series HCPL2300300E optocoupler today and ensure robust, high-speed data communication for your industrial projects.
