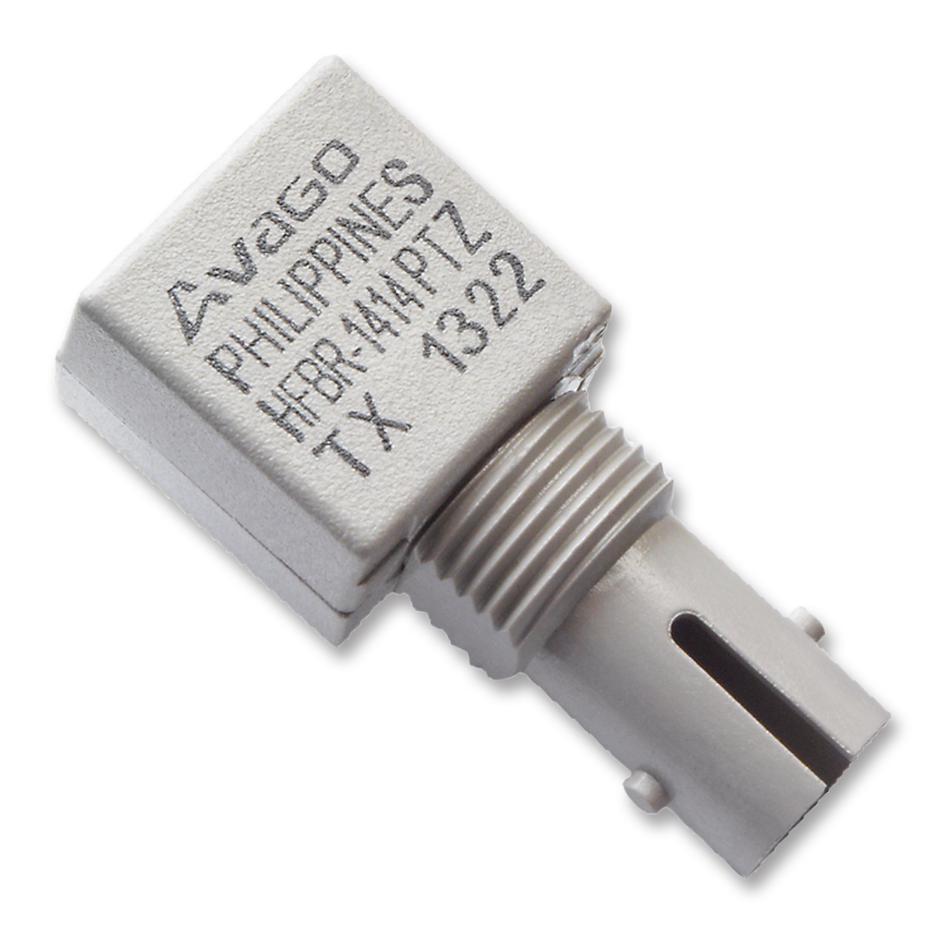

BROADCOM HFBR1414PTZ Fiber Optic Transmitter
The HFBR-1414PTZ is a reliable 820 nm miniature fiber optic transmitter designed for industrial and high-speed data communication applications. It features high coupling efficiency, low power consumption, and is compatible with multiple fiber sizes including 50/125, 62.5/125, 100/140, and 200 um PCS fiber. Suitable for distances up to several kilometers, it offers improved ESD protection with Zener diode integration. The product is housed in a compact, heat-resistant package with optional conductive or metal port configurations, making it ideal for industrial control, Ethernet, and data link systems.
BROADCOM HFBR1414PTZ Fiber Optic Transmitter Specifications:
- Wavelength: 820 nm
- Optical Power Output: -15.8 dBm at 60 mA into 50/125 um fiber, -12 dBm into 62.5/125 um fiber
- Power Supply Voltage: 5 V (typical)
- Electrical/Optical Response: 53 to 96 mV/W, at 25°C
- Maximum Forward Voltage: 2.09 V at 60 mA
- Peak Emission Wavelength: 820 nm
- Device Size: Compact dual-inline package
- Port Options: SMA, ST, FC, and SC ports available
- Operating Temperature Range: -40°C to +85°C
- ESD Protection: Improved version with Zener diode, tolerates up to 2 kV (HBM)
- Materials: High-strength, heat-resistant, flame-retardant plastic
- Mechanical Dimensions: Refer to datasheet for specific mounting details
- Compliance: RoHS compliant, meets ANSI standards
- Applications: Industrial controls, Ethernet standards, video links, and fiber media conversion
Buy the Broadcom HFBR-1414PTZ – Reliable Fiber Optic Transmitter for Industrial Applications
Purchase the Broadcom HFBR-1414PTZ fiber optic transmitter online today to ensure your industrial and networking projects benefit from a high-quality, reliable optical communication component. Designed for long-distance high-speed data transfer, it supports multiple fiber sizes and features excellent electrical and optical performance. With RoHS compliance and optional enhanced ESD protection, this product guarantees durability and safety in demanding environments. Get the best value and quick delivery for your fiber optic communication needs—order now and improve your system reliability.
Order your Broadcom HFBR-1414PTZ fiber optic transmitter today and enhance your industrial and data communication systems with dependable, high-performance optical links.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1414PTZ?
You can click on the BUY or RFQ button to purchase HFBR1414PTZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1414PTZ?
You can download the HFBR1414PTZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1414PTZ?
BROADCOM
