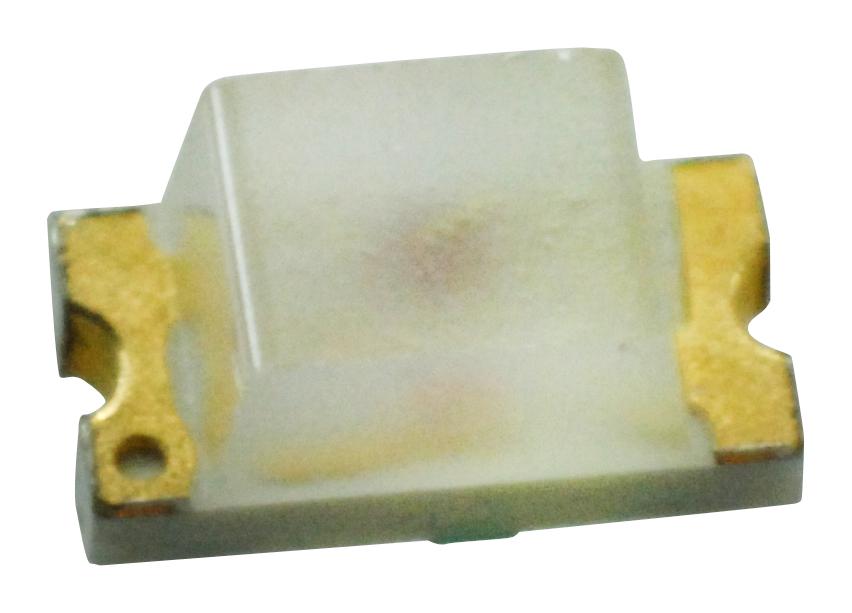

BROADCOM HSMYC190 Yellow Surface Mount LED
The HSMY-C190 is a yellow surface-mount chip LED featuring diffused optics made of GaP material. It conforms to industry-standard 3.2 x 1.6 mm package dimensions, ensuring compatibility and ease of handling. Designed for reliable use with infrared reflow soldering processes, this LED's small size and wide viewing angle make it ideal for backlighting and front panel illumination applications, especially in space-constrained environments. It operates within a temperature range of -30°C to 85°C, suitable for various industrial, signaling, and lighting applications.
BROADCOM HSMYC190 Yellow Surface Mount LED Specifications:
- Package Dimensions: 3.2 x 1.6 mm
- Material: GaP (Gallium Phosphide)
- Optics: Diffused
- Operating Temperature Range: -30°C to 85°C
- Maximum Junction Temperature: 95°C
- Soldering Method: Infrared reflow compatible
- Viewing Angle: Wide-angle design
- Color: Yellow
- Mounting Type: Surface-mount chip LED
- Storage Temperature Range: -40°C to 85°C
- Power Dissipation: 52 mW
- Reverse Voltage: 5 V
- Forward Current: 20 mA
- Wavelength Peak: 586 nm
Buy the Buy Avago Technologies HSMY-C190 Yellow Surface Mount LED Part Number HSMY-C190 Online
Purchase the Avago Technologies HSMY-C190 yellow surface-mount LED online today and enjoy fast delivery. Perfect for backlighting, indicator, and panel illumination, its diffused lens provides uniform light distribution. Designed for compatibility with infrared reflow soldering, this compact LED features a wide viewing angle, operates reliably within -30°C to 85°C, and is suitable for industrial, signaling, and lighting applications. Upgrade your designs with this high-quality, space-saving LED component for consistent performance and easy installation.
Order your Avago Technologies HSMY-C190 yellow surface-mount LED today and enhance your backlighting or front panel illumination with reliable, space-efficient lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HSMYC190?
You can click on the BUY or RFQ button to purchase HSMYC190 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMYC190?
You can download the HSMYC190 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMYC190?
BROADCOM
