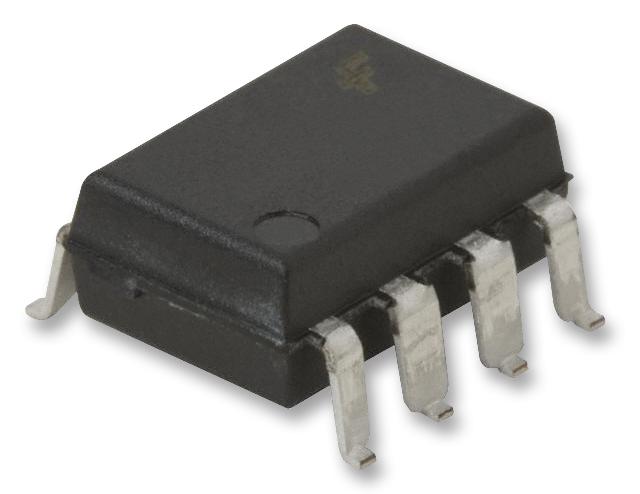

BROADCOM HCPL2611300E High-Speed Digital Isolator
The HCPL-2611-300E is a single-channel, 8-pin surface-mount optocoupler combining an AlGaAs/GaAsP LED with an integrated high-gain photodetector. It features a strobable enable input for precise control and an open-collector output with Schottky diode clamping for fast switching. Its internal shield provides excellent common-mode transient immunity up to 15,000 V/μs at 1,000 V, ensuring maximum AC/DC circuit isolation. Operating reliably from -40°C to 85°C, it is ideal for digital communication, microprocessor interface, and high-speed data transfer in noisy industrial environments.
BROADCOM HCPL2611300E High-Speed Digital Isolator Specifications:
- Package: 8-Pin Surface Mount (SO-8)
- Isolation Voltage: 3750 V, 1 min (UL recognized) and 5000 V, 1 min
- Common Mode Rejection: ≥15,000 V/μs at 1,000 V
- Temperature Range: -40°C to +85°C
- Output Type: Open-collector transistor with Schottky clamp
- Input Forward Voltage: Typically 1.75V at 10mA
- Input Current: Max 15mA recommended for optimal performance
- Supply Voltage: 45V to 55V
- Enable Input: Strobable, TTL compatible, Low level ≤0.8V, High level ≥2.0V
- Maximum Collector Current: 50mA
- Output Power Dissipation: Max 85mW
- Soldering Temperature: 260°C for 10 seconds (through hole)
- Reflow Solder Profile: As per JEDEC standard
- Certifications: UL, CSA approved
- Operational Lifetime: RoHS compliant, lead-free options available
Buy the Avago HCPL2611-300E – Reliable Digital Isolator for Industrial Applications
Order the HCPL2611-300E online today to ensure your circuit's superior signal integrity and noise immunity. This optocoupler guarantees excellent transient immunity up to 15,000 V/μs, making it perfect for high-speed digital communication, microprocessor interfacing, and industrial automation systems. Its wide temperature range of -40°C to 85°C ensures reliable operation in harsh environments. With UL and CSA approvals, it offers maximum safety and durability. Get it now to streamline your high-speed data transfer, enhance signal isolation, and improve overall system performance with fast switching capabilities and high circuit isolation robustness.
Buy Avago HCPL2611-300E now and experience unmatched reliability and performance in high-speed digital isolation and noisy environment applications.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2611300E?
You can click on the BUY or RFQ button to purchase HCPL2611300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2611300E?
You can download the HCPL2611300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2611300E?
BROADCOM
