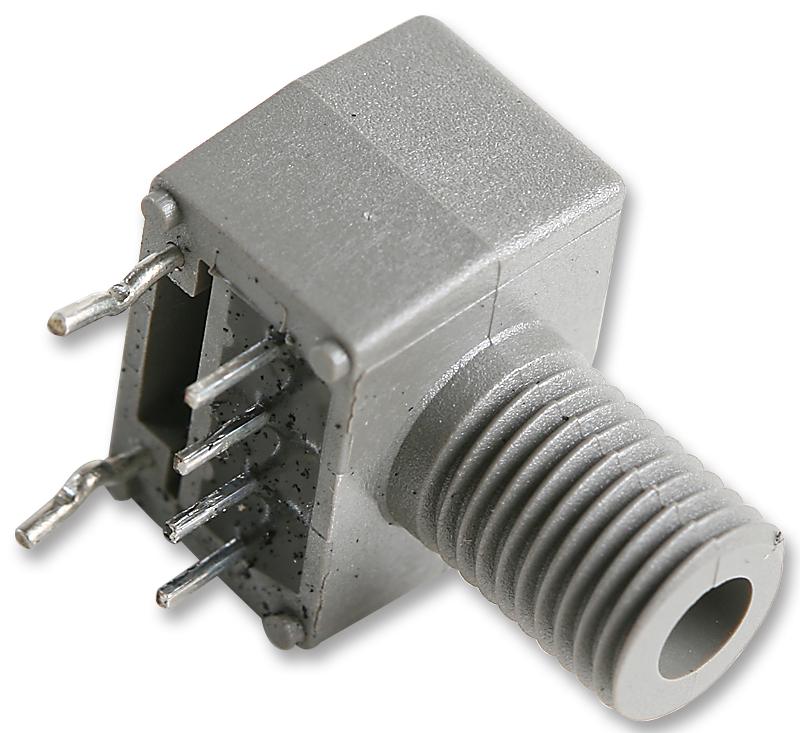

BROADCOM HFBR1505CZ Fiber Optic Transmitter and Receiver Modules
The HFBR-1505AZ/2505AZ and HFBR-1515BZ/2515BZ are fiber optic transmitters and receivers designed for industrial communication standards including SERCOS, PROFIBUS, and INTERBUS-S. These modules support data rates from DC to 10 MBd, utilizing 650 nm wavelength LED technology. They are housed in robust, low-cost plastic packages suitable for high volume production, with optical compatibility for plastic optical fiber (POF) and hard clad silica (HCS). Featuring auto-insertable, wave solderable designs, they deliver noise immunity and voltage isolation, ideal for factory automation, control links, and motor drive applications.
BROADCOM HFBR1505CZ Fiber Optic Transmitter and Receiver Modules Specifications:
- Wavelength: 650 nm
- Data Rate: DC to 10 MBd
- Link Distance: 0.1 to 40 meters with POF, up to 400 meters with HCS
- Package: Dual-in-line, flame retardant plastic
- Connectors: SMA and ST
- Operating Temperature: -40°C to +85°C
- Optical Power: POF -10.5 to -5.5 dBm, HCS -18 to -10 dBm
- Power Supply Voltage: 4.75 V to 5.25 V
- Maximum Input Power Level: -42 dBm (receiver), Peak Power: -10.5 dBm (transmitter)
- Pulse Width Distortion: Typically <30 ns
- Soldering Temp: 260°C for 10 sec
- RoHS compliant
- Moisture Sensitivity Level: 3
Buy the Buy Avago HFBR1505CZ Part Number HFBR1505CZ Online
Order the Avago HFBR-1505CZ fiber optic transmitter and receiver today for seamless integration into your industrial control systems. These modules support data rates up to 10 MBd, using 650 nm LEDs, and are compatible with plastic optical fiber and hard clad silica, ensuring noise immunity and voltage isolation. Their rugged plastic housing and dual connector options make them ideal for factory automation, PLCs, and motor drives. Purchase online now to enhance your industrial communication network with reliable, high-performance fiber optic components at competitive prices.
Buy Avago HFBR1505CZ now and experience unmatched reliability and performance for industrial fiber optic communication systems.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1505CZ?
You can click on the BUY or RFQ button to purchase HFBR1505CZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1505CZ?
You can download the HFBR1505CZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1505CZ?
BROADCOM
