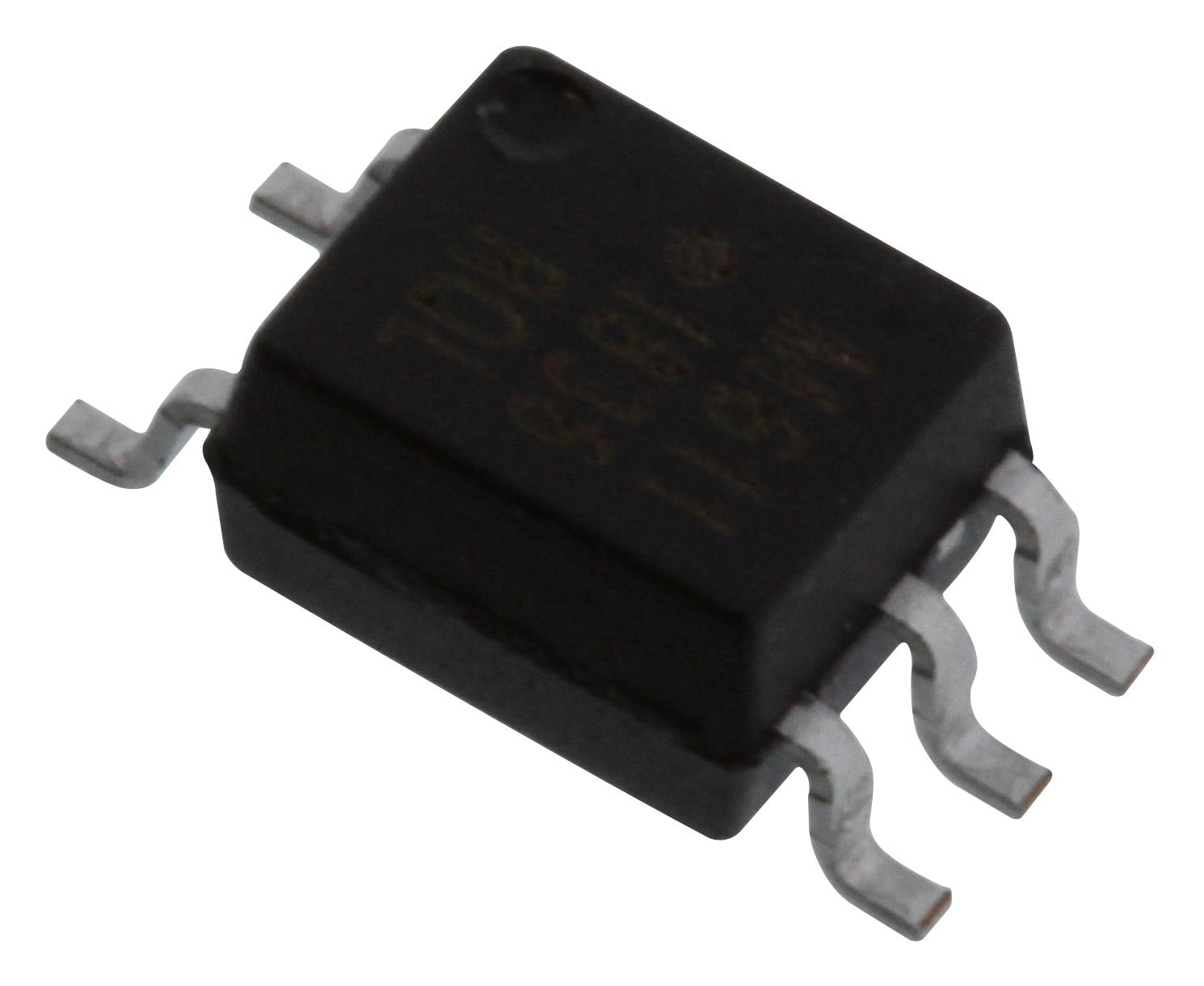

BROADCOM HCPLM611500E Logic Gate Optocoupler
This high-speed, surface-mount optocoupler features a small outline 5-pin package, designed for digital isolation, high CMR, and TTL compatibility. It uses GaAsP LED technology with an integrated high-gain detector and open-collector transistor output. Operating from -40°C to 85°C, it supports data rates up to 10 Mbps, making it ideal for line receivers, microprocessor interfaces, and power supply isolation. Its compact design ensures high noise immunity, maximum transient immunity of 15,000 V/μs, and compliance with UL, CSA, and IEC safety standards.
BROADCOM HCPLM611500E Logic Gate Optocoupler Specifications:
- Package Type: Surface Mount, JEDEC MO-155 (SO-5)
- Number of Pins: 5
- Input Current: 5 mA (recommended), 20 mA (max)
- Input Voltage: Forward voltage typical 1.2 V at 10 mA
- Output: Open-collector Schottky-clamped transistor
- Maximum Ratings: Storage temperature -55°C to +125°C, Operating temperature -40°C to +85°C
- Isolation Voltage: Up to 3750 V (UL), 560 V (working insulation)
- Common Mode Rejection: 15,000 V/μs (HCPL-M611), 10,000 V/μs (HCPL-M601)
- Data Rate Support: 10 Mbps
- Link stability: TTL compatible, low input current, high noise immunity
- Safety Standards: UL recognized, CSA, IEC/EN approved
- Reflow Compatibility: Infrared vapor phase and wave soldering
