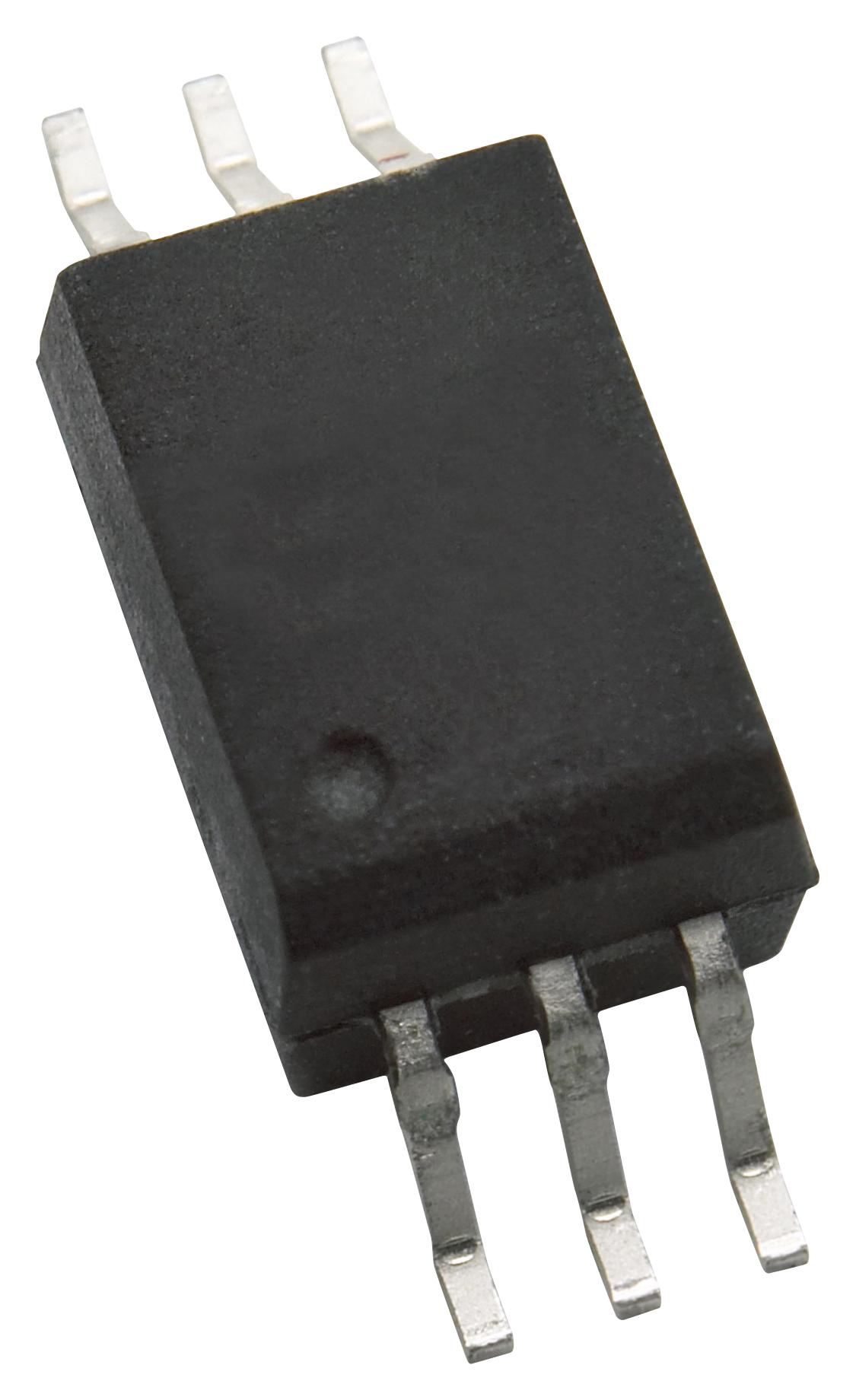

BROADCOM ACPLW346500E MOSFET Gate Drive Optocoupler
The Broadcom ACPL-W346 is a high-performance optocoupler specifically engineered for driving power MOSFETs, Gallium Nitride (GaN), and Silicon Carbide (SiC) devices in applications such as inverter systems, AC-DC, and DC-DC converters. Its 2.5A peak output current and rail-to-rail output voltage enable direct MOSFET driving at high frequencies for improved conversion efficiency. The ACPL-W346 boasts a high insulation voltage (891 Vpeak) and incorporates features like Under Voltage Lock-Out (UVLO) protection and a wide operating voltage range (10V-20V), ensuring reliable and safe operation. It is UL Recognized and CSA approved, making it suitable for a wide range of industrial applications.
BROADCOM ACPLW346500E MOSFET Gate Drive Optocoupler Specifications:
- maximum_peak_output_current: 2.5A
- minimum_peak_output_current: 2.0A
- output_voltage: Rail-to-rail
- propagation_delay: 120 ns maximum
- propagation_delay_difference: 50 ns maximum
- common_mode_rejection: 100 kV/µs minimum at VCM = 1500V
- supply_current: 4.0 mA maximum
- operating_voltage_range: 10V to 20V
- operating_temperature_range: -40°C to +105°C
- insulation_voltage: 891 Vpeak
- ul_recognition: 3750V/5000 VRMS for 1 min.
- csa_approval: Yes
- iec_en_din_en_approval: Yes
- rohs_compliant: Yes
