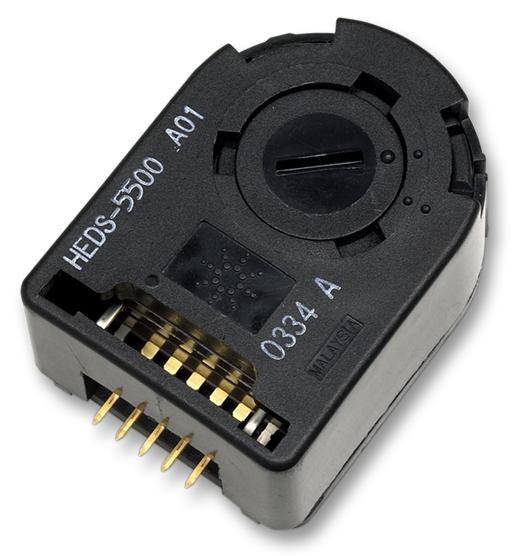

BROADCOM HEDS5500A11 Optical Encoder
The HEDS-5500 series encoders are high-performance, low-cost optical incremental encoders with two channel quadrature outputs and optional index pulse. They feature a compact design, quick assembly, and operate over -40°C to 100°C. Utilizing a lensed LED source, integrated circuitry, and codewheels, these encoders provide resolutions up to 1024 CPR, making them suitable for various motion detection applications like printers and tape drives. Easy to mount with external mounting ears, they deliver reliable and precise rotary position sensing without signal adjustment requirements.
BROADCOM HEDS5500A11 Optical Encoder Specifications:
- Supply Voltage: 5.0 V ±10%
- Operating Temperature: -40°C to 100°C
- Storage Temperature: -40°C to 100°C
- Output Waveforms: TTL compatible, quadrature signals
- Peak Output Voltage: 4 V (High), 0.4 V (Low)
- Max Shaft Speed: 30,000 RPM
- Resolution: Up to 1024 CPR
- Physical Dimensions: Compact size with mounting holes, shaft diameter options 2-6 mm
- Package includes mounting ears and alignment tool
- Connector: 5-pin with 0.1-inch pitch
- Linearity and cycle error within specified limits
- Protective silicon rubber cover available for dusty environments
Buy the Buy Avago HEDS-5500 Part Number HEDS5500A11 Online
Purchase your Avago HEDS-5500 series optical encoder online now to ensure high accuracy and dependable rotary position sensing. Perfect for printers, tape drives, and automatic systems, these encoders offer resolutions up to 1024 CPR, quick assembly, and compact design enabling easy installation for high-volume industrial applications. With optional mounting ears and protective covers, you can adapt the encoder for dusty environments and large motor shafts, ensuring long-term performance and reliability. Get yours today for consistent and precise motion detection.
Order your Avago SeriesHEDS-5500 optical encoder today and enhance your motion control projects with reliable and precise rotary sensing.
